UHE-12 Series

Catalog

DC DC CONVERTER 12V 30W

Part	Package / Case	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Control Features	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Applications	Type	Voltage - Input (Max) [Max]	Mounting Type	Features
Murata Electronics UHE-12/2500-D24-C	9-DIP Module 6 Leads	1	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV	Active High Enable	2.5 A	30 Watts	92 %	18 V	85 °C	-40 C	12 V	ITE (Commercial)	Isolated Module	36 V	Through Hole	OCP OTP Remote On/Off SCP UVLO
Murata Electronics UHE-12/2500-D48-C	9-DIP Module 6 Leads	1	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV	Active High Enable	2.5 A	30 Watts	92 %	36 V	85 °C	-40 C	12 V	ITE (Commercial)	Isolated Module	75 V	Through Hole	OCP OTP Remote On/Off SCP UVLO

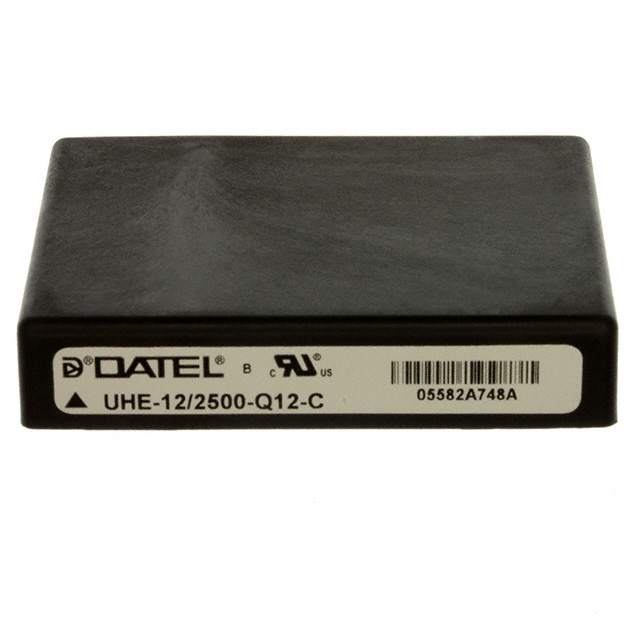

Murata Electronics UHE-12/2500-Q12-C	9-DIP Module 6 Leads	1	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV	Active High Enable	2.5 A	30 Watts	87.5 %	9 V	85 °C	-40 C	12 V	ITE (Commercial)	Isolated Module	36 V	Through Hole	OCP OTP Remote On/Off SCP UVLO
Murata Electronics UHE-12/2500-Q48N-C	9-DIP Module 6 Leads	1	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV	Active Low Enable	2.5 A	30 Watts	90.5 %	18 V	85 °C	-40 C	12 V	ITE (Commercial)	Isolated Module	75 V	Through Hole	OCP OTP Remote On/Off SCP UVLO
Murata Electronics UHE-12/2500-D12-C	9-DIP Module 6 Leads	1	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV	Active High Enable	2.5 A	30 Watts	89 %	9 V	85 °C	-40 C	12 V	ITE (Commercial)	Isolated Module	18 V	Through Hole	OCP OTP Remote On/Off SCP UVLO
