160859 Series

Catalog

CONN QC TAB 17-20AWG 0.250 CRIMP

Part	Insulation	Terminal Type	Contact Finish	Contact Material	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Tab Width	Tab Width	Wire Gauge [Min]	Wire Gauge [Max]	Gender	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Termination

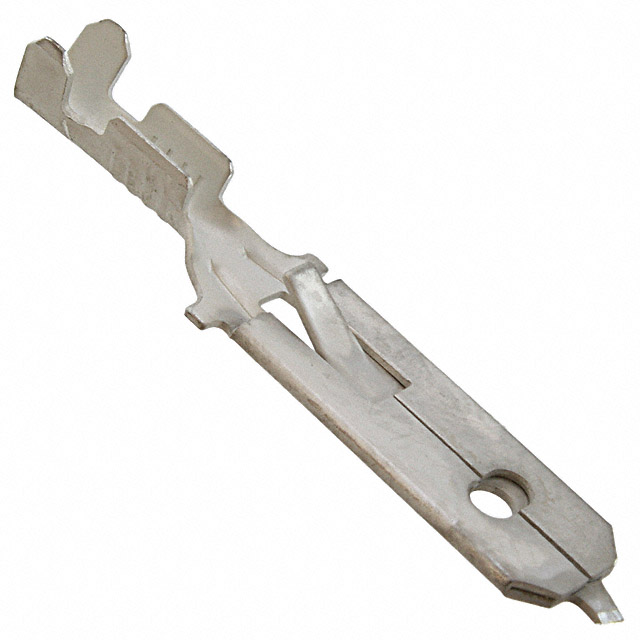

TE Connectivity Raychem Cable Protection 160859-2	Non-Insulated	Standard	Tin	Brass	0.055 " 1.4 mm	0.091 " 2.31 mm	6.35 mm	0.25 in	17 AWG	20 AWG	Male	0.62 in	15.75 mm	0.032 in	0.81 mm	Free Hanging (In-Line)	1.102 in	27.99 mm	Crimp
