TMW-86 Series

Catalog

BUZZER PIEZO 33.02MM PNL MNT

Part	Ingress Protection	Sound Pressure Level (SPL)	Frequency	Operating Mode	Approval Agency	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Port Location	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Termination	Termination	Voltage Range [Min]	Voltage Range [Max]	Current - Supply [Max]	Current - Supply [Min]	Mounting Type	Input Type	Current - Supply [Max] [x]	Current - Supply [Min] [x]

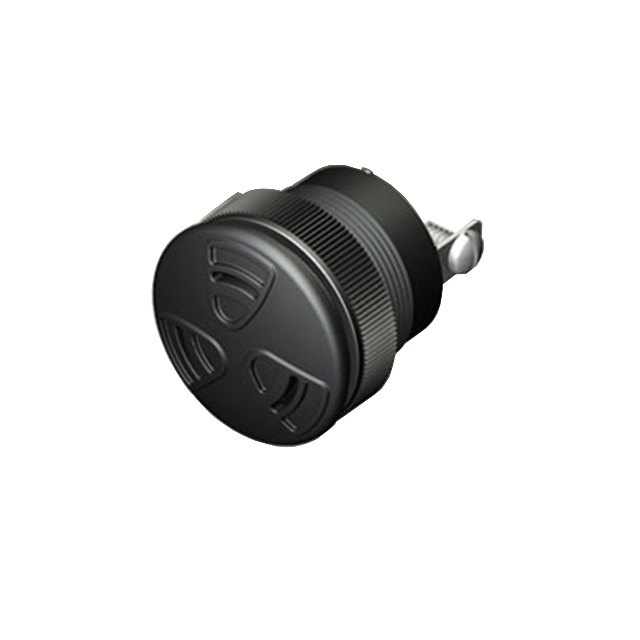

Floyd Bell Inc TMW-86-531-S(S)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Slow Warble	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	5 VDC	24 V	15 mA	2 mA	Panel Mount
Floyd Bell Inc TMW-86-531-W(F)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Warble Fast	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in		Wire Leads		5 VDC	24 V	15 mA	2 mA	Panel Mount
Floyd Bell Inc TMW-86-530-Q(S)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Slow Warble	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	30 V			Panel Mount	DC	10 mA	2 mA

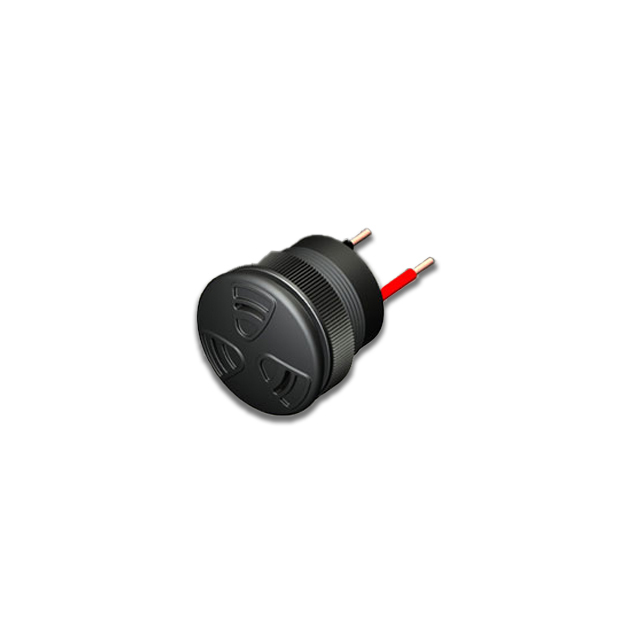

Floyd Bell Inc TMW-86-530-W(S)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Slow Warble	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in		Wire Leads		5 VDC	30 V			Panel Mount	DC	10 mA	2 mA
Floyd Bell Inc TMW-86-531-W(S)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Slow Warble	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in		Wire Leads		5 VDC	24 V	15 mA	2 mA	Panel Mount
Floyd Bell Inc TMW-86-201-Q(F)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Warble Fast	UL UR	Piezo	1.41 in	35.81 mm	Indicator Internally Driven	Top	31.75 mm	1.25 "	0.25 "	Quick Connect Tab	6.35 mm	30 VDC	120 V	15 mA	2 mA	Panel Mount	AC
Floyd Bell Inc TMW-86-201-S(S)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Slow Warble	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	30 VDC	120 V	15 mA	2 mA	Panel Mount	AC
Floyd Bell Inc TMW-86-531-S(F)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Warble Fast	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	5 VDC	24 V	15 mA	2 mA	Panel Mount
Floyd Bell Inc TMW-86-948-Q(F)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Warble Fast	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in	0.25 "	Quick Connect Tab	6.35 mm	9 V	48 V			Panel Mount	DC	10 mA	2 mA

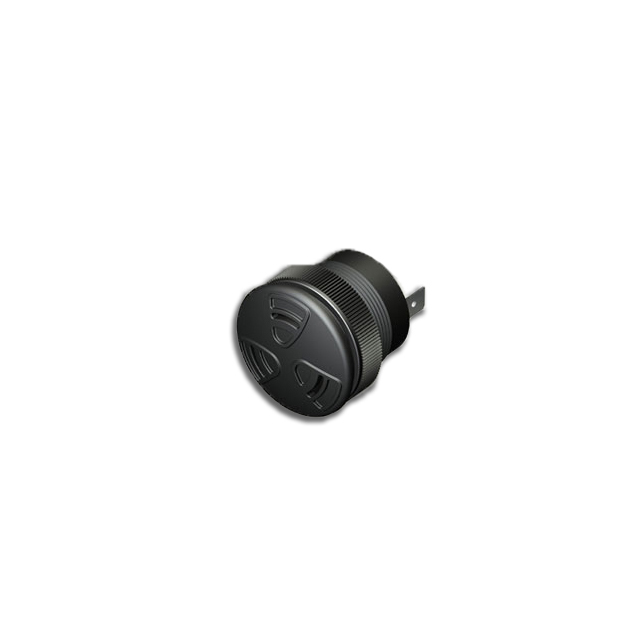

Floyd Bell Inc TMW-86-531-Q(F)	IP68 - Dust Tight Waterproof	95 dB	2.9 kHz	Warble Fast	UL UR	Piezo	1.3 in	33.02 mm	Indicator Internally Driven	Top	29.97 mm	1.18 in	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	24 V	15 mA	2 mA	Panel Mount
