395-114 Series
Manufacturer: EDAC Inc.
Beta
⌘K

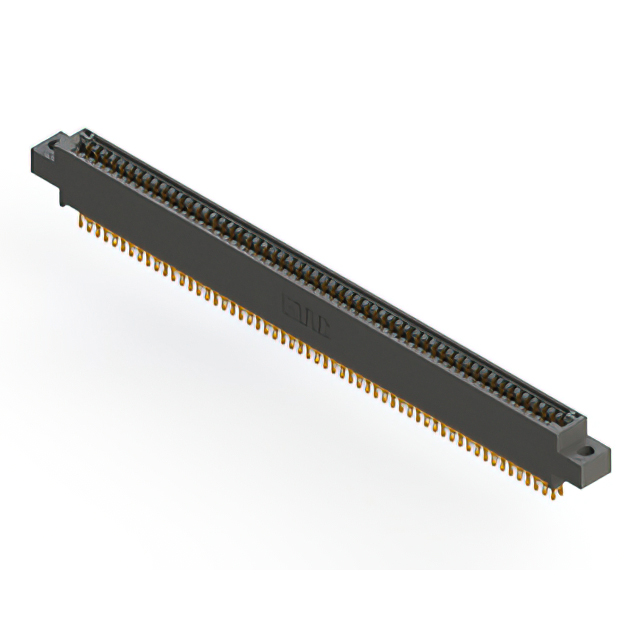

CONN EDGE DUAL FML 114POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Card Type | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Gender | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Positions/Bay/Row [custom] | Contact Material | Number of Rows [custom] | Number of Positions | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Cantilever | Right Angle Through Hole | Gold | 0.25 Ám | 10 Áin | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | M3 Threaded Insert Top Mount Opening | Cantilever | Board Edge Straddle Mount | Gold | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | Card Extender | ||

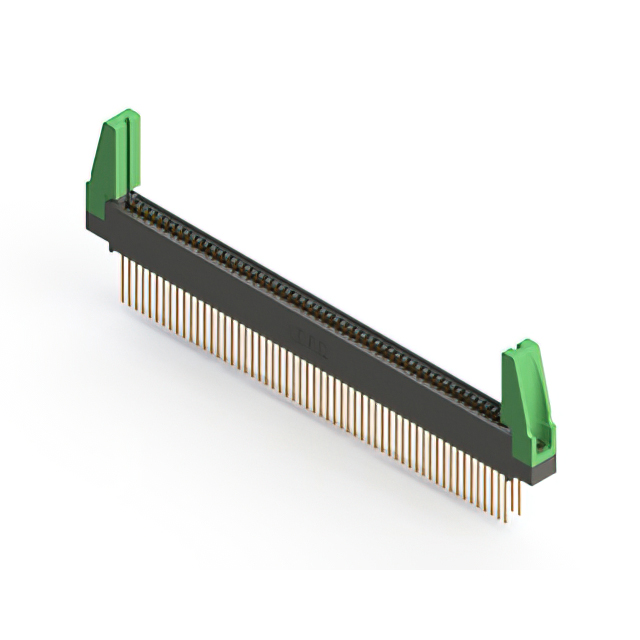

 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | 4-40 Threaded Insert Top Mount Opening | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Board Edge Straddle Mount | Gold | 0.25 Ám | 10 Áin | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | 0.156 " | 3.96 mm | Cantilever | Board Edge Straddle Mount | Gold | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | Card Extender | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | Wire Wrap | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | Cantilever | Board Edge Straddle Mount | Gold | 0.25 Ám | 10 Áin | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | Black | 4-40 Threaded Insert Top Mount Opening | Cantilever | Through Hole | Gold | 0.25 Ám | 10 Áin | Solder | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Dual | 57 | Copper Alloy | 2 | 114 | 0.1 " | 2.54 mm |
