147100 Series

Catalog

16 MODIV VRT DR DE .300 WIDE

Part	Mounting Type	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Fastening Type	Current Rating (Amps)	Insulation Color

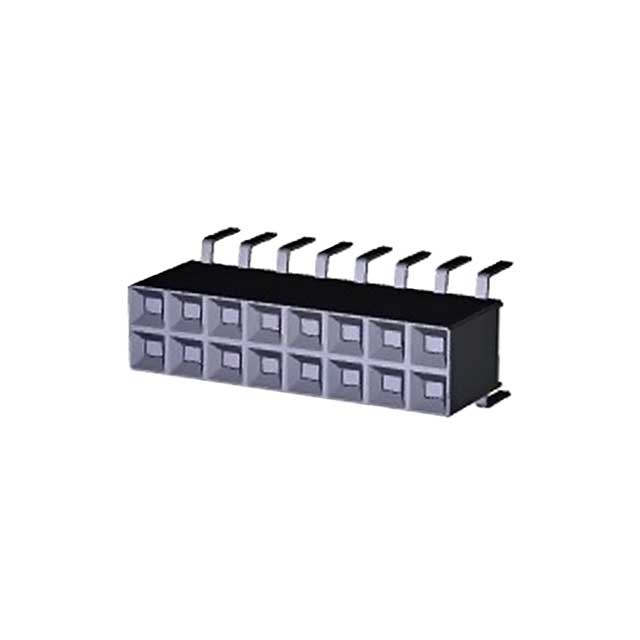

TE Connectivity Raychem Cable Protection 5-147100-6	Through Hole	Tin	16	150 Áin	3.81 Ám	6.73 mm	0.265 in	UL94 V-0	125 °C	-65 ░C	2	0.1 in	2.54 mm	Square	3.18 mm	0.125 in	Solder	Phosphor Bronze	2.54 mm	0.1 in	Receptacle Bottom or Top Entry	All	Female Socket	150 Áin	3.81 Ám	Board to Board Cable	Push-Pull	2 A	Black
