680S5W1 Series
Manufacturer: NorComp Inc.
Beta
⌘K

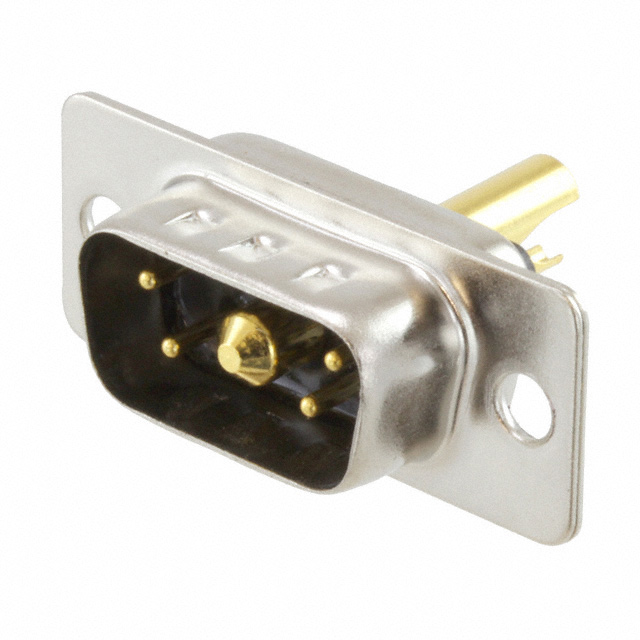

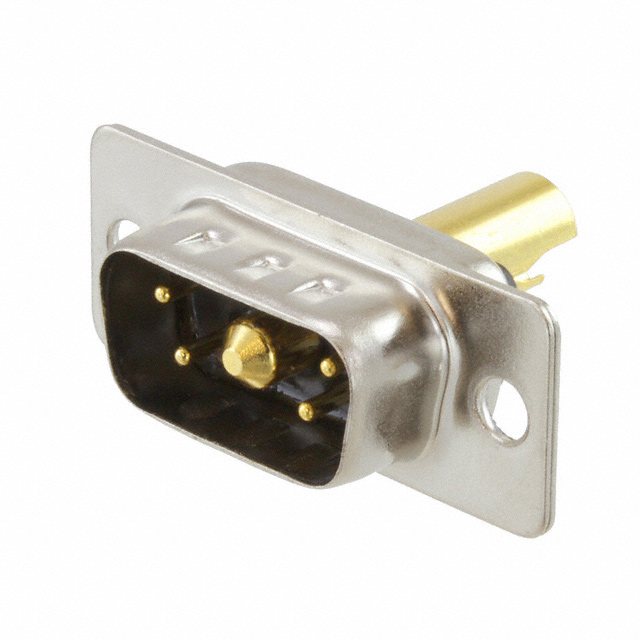

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DE-5W1, PLUG, 5 CONTACTS
| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Number of Positions | Shell Material, Finish | Contact Finish Thickness | Connector Type | Features | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Connector Style | Ingress Protection | Current Rating (Amps) | Material Flammability Rating | Contact Type | Contact Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Copper Alloy | Panel Mount | 5 | Nickel Plated Steel | Flash | Plug Male Pins | Grounding Indents | Housing/Shell (Unthreaded) | 1 | 5W1 DE E | 2 | Combo D-Sub | IP67 - Dust Tight Waterproof | 5 A 40 A | UL94 V-0 | Signal and Power | Gold | |
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Copper Alloy | Panel Mount | 5 | Nickel Plated Steel | Flash | Plug Male Pins | Grounding Indents | Housing/Shell (Unthreaded) | 1 | 5W1 DE E | 2 | Combo D-Sub | IP67 - Dust Tight Waterproof | UL94 V-0 | Signal and Power | Gold | 20A 5A |
