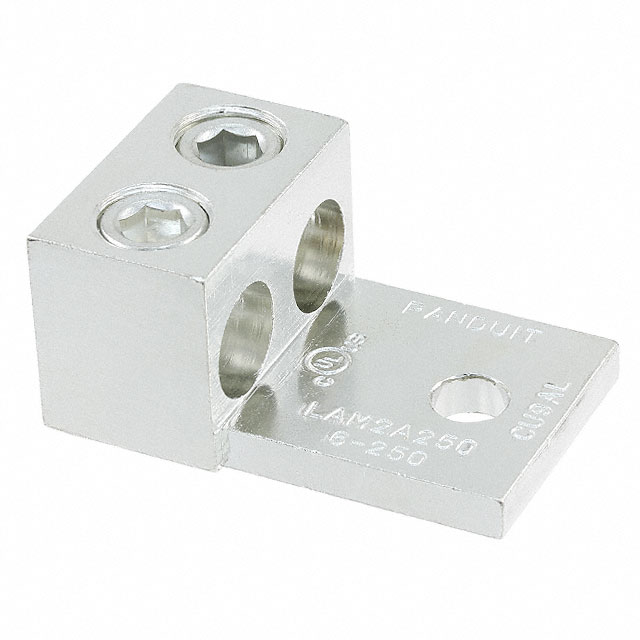

LAM2A250 Series
Manufacturer: Panduit Corp
Beta
⌘K
CONN TERM RECT LUG 6 AWG #3/8
| Part | Terminal Type | Termination | Stud/Tab Size | Mounting Type | Insulation | Length - Overall [x] | Length - Overall [x] | Contact Finish | Features | Terminal Style | Width - Outer Edges [y] | Width - Outer Edges [y] | Tab Thickness | Tab Thickness | Contact Material | Wire Gauge | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Grounding Lug | Screw | 3/8 Stud | Free Hanging (In-Line) | Non-Insulated | 65.02 mm | 2.56 in | Tin | Dual Barrel With Screw | Single Stud Hole | 1.64 in | 41.66 mm | 6.35 mm | 0.25 in | Aluminum | 250 MCM | 6 AWG |
