ATS-04B Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

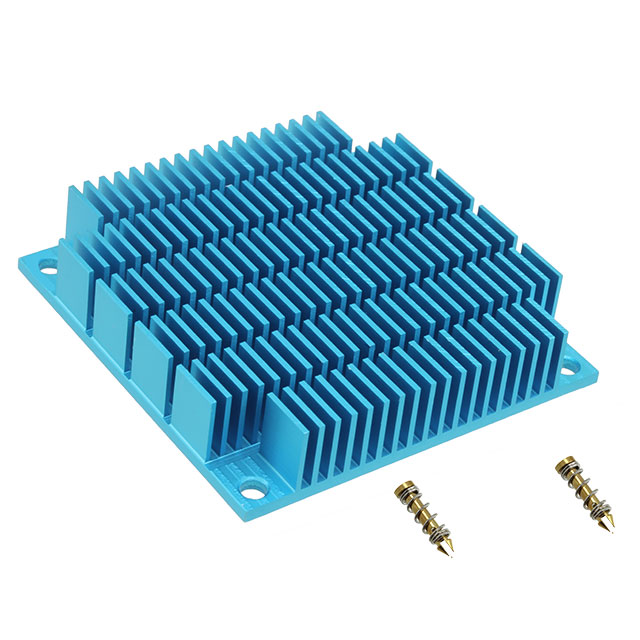

HEATSINK 60X60X12.7MM XCUT T412

...

Part	Package Cooled	Width [y]	Width [y]	Fin Height	Fin Height	Attachment Method	Thermal Resistance @ Forced Air Flow	Type	Shape	Material	Length [x]	Length [x]	Material Finish	Width [x]	Width [x]	Length	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height [custom]	Width	Width	Length	Shape [custom]	Shape [custom]
Advanced Thermal Solutions Inc. ATS-04B-22-C3-R0	ASIC BGA CPU LGA	2.362 in	60 mm	0.5 "	12.7 mm	Push Pin	13.88 °C/W	Top Mount	Fins Square	Aluminum	2.362 in	60 mm	Blue Anodized
Advanced Thermal Solutions Inc. ATS-04B-45-C1-R0	ASIC BGA CPU LGA					Push Pin	14.95 °C/W	Top Mount	Fins Square	Aluminum	0.984 in		Blue Anodized	25 mm	0.984 "	25 mm	20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-04B-153-C2-R0	ASIC BGA CPU LGA	1.575 in	40 mm			Push Pin	11.95 °C/W	Top Mount	Fins Square	Aluminum			Blue Anodized						0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-04B-68-C1-R0	ASIC BGA CPU LGA					Push Pin	15.29 °C/W	Top Mount	Fins Square	Aluminum	1.772 in	45 mm	Blue Anodized				15 mm	0.59 in			1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-04B-100-C1-R0	ASIC BGA CPU LGA			0.984 in	25 mm	Push Pin	8.69 °C/W	Top Mount	Fins Square	Aluminum	1.772 in	45 mm	Blue Anodized								1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-04B-139-C3-R0	ASIC BGA CPU LGA					Push Pin	9.37 °C/W	Top Mount	Fins Square	Aluminum	0.984 in		Blue Anodized	25 mm	0.984 "	25 mm	20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-04B-14-C3-R0	ASIC BGA CPU LGA					Push Pin	10.05 °C/W	Top Mount	Fins Square	Aluminum	1.969 in	50 mm	Blue Anodized	50 mm	1.969 in		20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-04B-03-C1-R0	ASIC BGA CPU LGA	1.575 in	40 mm			Push Pin	15.83 °C/W	Top Mount	Fins Square	Aluminum			Blue Anodized				15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-04B-08-C1-R0	ASIC BGA CPU LGA					Push Pin	14.59 °C/W	Top Mount	Fins Square	Aluminum	1.772 in	45 mm	Blue Anodized				15 mm	0.59 in			1.772 in	45 mm

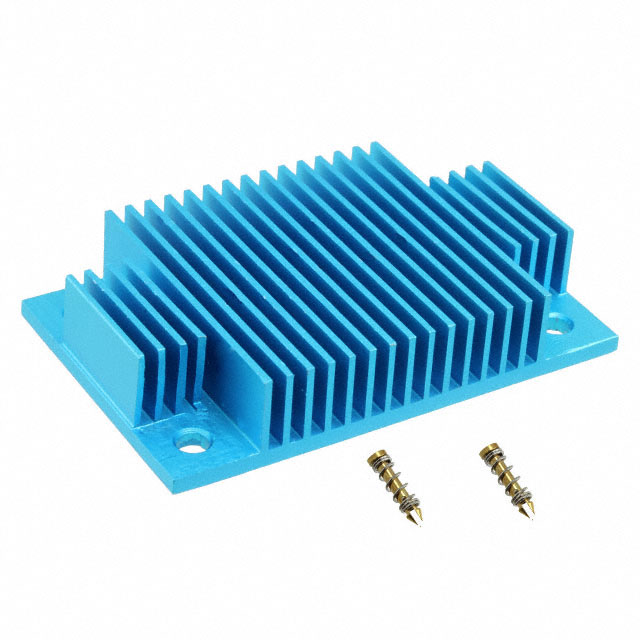

Advanced Thermal Solutions Inc. ATS-04B-36-C1-R0	ASIC BGA CPU LGA	2.267 in	57.6 mm			Push Pin	14.81 °C/W	Top Mount		Aluminum			Blue Anodized			36.83 mm	11.43 mm	0.45 "					1.45 "	Rectangular	Fins
