2138A Series
Manufacturer: Belden Inc.
Beta
⌘K

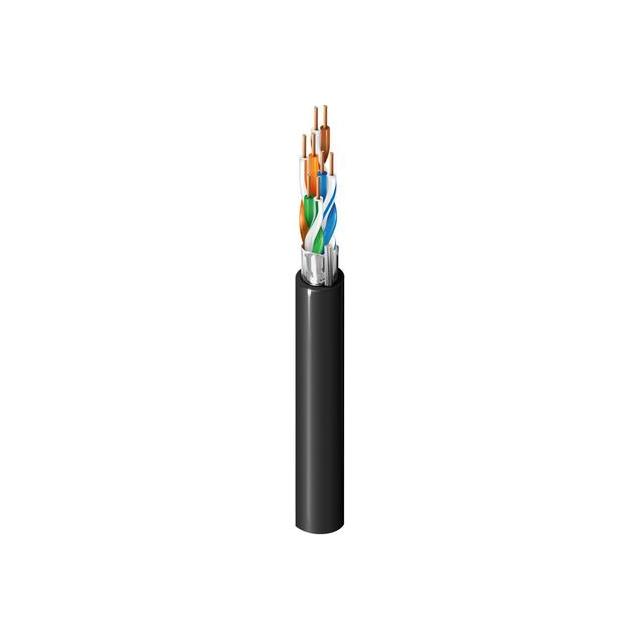

CAT5E 4PR F/UTP CMR/CMX REEL
| Part | Shield Coverage | Shield Material | Conductor Insulation | Conductor Insulation | Shield Type | Wire Gauge | Features | Conductor Material | Length | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Cable Type | Usage | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Polyolefin | PO | Foil | 24 AWG | Drain Wire UV Resistant | Copper Bare | 304.8 m | 1000 ft | 300 VDC | 6.73 mm | 0.265 in | Solid | Multi-Pair Cat5e | Ethernet LAN Video | Poly-Vinyl Chloride (PVC) | 8 | Black | -40 C | 75 ░C |
