TPS61140 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC LED DRV RGLTR PWM 35MA 10VSON
| Part | Applications | Package / Case | Type | Supplier Device Package | Voltage - Supply (Min) [Min] | Frequency | Voltage - Supply (Max) [Max] | Internal Switch(s) | Number of Outputs | Mounting Type | Voltage - Output | Current - Output / Channel | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Dimming | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Outputs and Type | Outputs and Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Backlight | 10-VFDFN Exposed Pad | DC DC Regulator | 10-VSON (3x3) | 2.5 V | 1.2 MHz | 6 V | 2 | Surface Mount | 27 V | 35 mA | Step-Up (Boost) | 85 °C | -40 °C | PWM | ||||||||
Texas Instruments | Backlight | 10-VFDFN Exposed Pad | DC DC Regulator | 10-VSON (3x3) | 2.5 V | 1.2 MHz | 6 V | 2 | Surface Mount | 27 V | 35 mA | Step-Up (Boost) | 85 °C | -40 °C | PWM | ||||||||

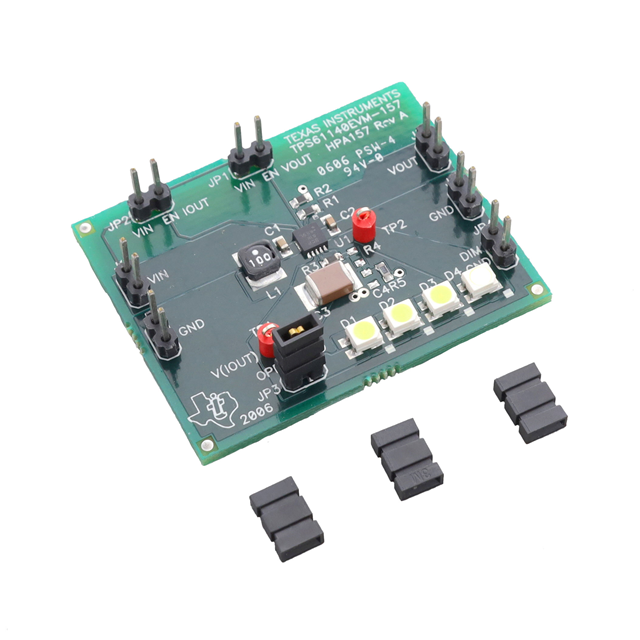

 Texas Instruments | 28 V | 15.1 mA | TPS61140 | 3 V | 6 V | Board(s) | Non-Isolated | 1 | Dimmable |
