OSTOQ07 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

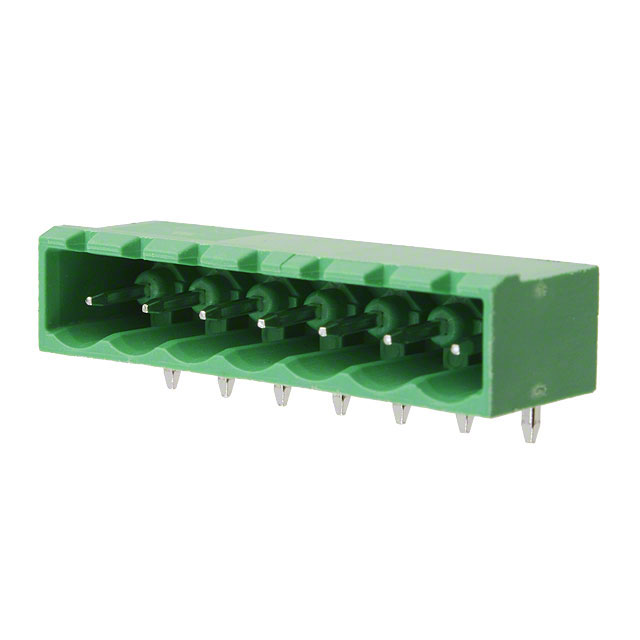

TERM BLOCK HDR 7POS 5MM
| Part | Material Flammability Rating | Contact Tail Length | Contact Tail Length | Insulation Height [z] | Insulation Height [z] | Housing Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Features | Pitch | Pitch | Voltage - UL | Positions Per Level [custom] | Number of Levels | Header Orientation | Number of Positions | Type | Mounting Type | Contact Mating Finish | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | Mating Flange | 0.197 in | 5 mm | 300 V | 7 | 1 | Vertical | 7 | Header Male Pins Shrouded (4 Side) | Through Hole | Tin | |
 On Shore Technology Inc. | 0.138 in | 3.5 mm | 3.5 mm | 0.138 " | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | 0.138 " | 3.5 mm | 300 V | 7 | 1 | 90° Right Angle | 7 | Header Male Pins Shrouded (4 Side) | Solder Through Hole | Tin | |||
On Shore Technology Inc. | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | 0.3 in | 7.62 mm | 300 V | 7 | 1 | 90° Right Angle | 7 | Header Male Pins Shrouded (4 Side) | Solder Through Hole | Tin | |||
On Shore Technology Inc. | 0.15 in | 3.81 mm | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | 0.098 in | 2.5 mm | 125 V | 7 | 1 | 90° Right Angle | 7 | Header Male Pins Shrouded (4 Side) | Solder Through Hole | Tin | 0.15 in 3.81 mm | ||||
On Shore Technology Inc. | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | 0.295 in | 7.5 mm | 300 V | 7 | 1 | 90° Right Angle | 7 | Header Male Pins Shrouded (2 Side) | Solder Through Hole | Tin | |||
 On Shore Technology Inc. | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | Brass | -40 C | 115 °C | Solder | 0.2 in | 5.08 mm | 300 V | 7 | 1 | Vertical | 7 | Header Male Pins Shrouded (4 Side) | Solder Through Hole | Tin | |||
On Shore Technology Inc. | Solder | 7 | 1 | 7 | Header Male Pins | Solder Through Hole | ||||||||||||||||
On Shore Technology Inc. | UL94 V-0 | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | Mating Flange | 0.2 in | 5.08 mm | 300 V | 7 | 1 | Vertical | 7 | Header Male Pins Shrouded (4 Side) | Solder Through Hole | Tin | |
 On Shore Technology Inc. | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | -40 C | 115 °C | Solder | 0.2 in | 5.08 mm | 300 V | 7 | 1 | 90° Right Angle | 7 | Header Male Pins Shrouded (4 Side) | Solder Through Hole | Tin | ||||
On Shore Technology Inc. | 0.157 in | 4 mm | 4 mm | 0.157 in | Thermoplastic | Brass | -30 ░C | 105 ░C | Solder | 0.3 in | 7.62 mm | 300 V | 7 | 1 | 90° Right Angle | 7 | Header Male Pins Shrouded (2 Side) | Solder Through Hole | Tin |
