9731 Series
Manufacturer: Belden Inc.
Beta
⌘K

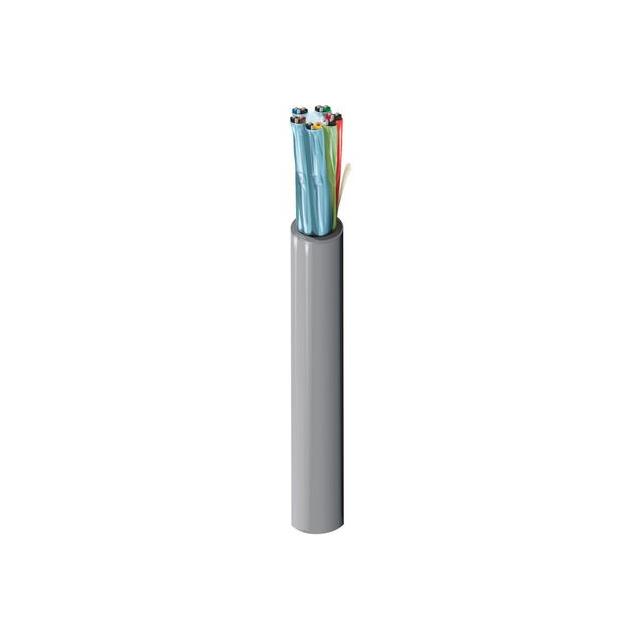

CABLE 12COND 24AWG CHROME
| Part | Shield Coverage | Shield Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Shield Type | Voltage | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Wire Gauge | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | UL Style 2919 | 1.219 mm | 0.048 in | Drain Wire | 80 °C | -20 ░C | Chrome | Foil | 300 VDC | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Foam Polyethylene (FPE) | 0.421 in | 10.69 mm | 12 | 7 | 32 AWG | Computer | 24 AWG | Copper Tinned | ||
 Belden Inc. | 100 % | Aluminum | UL Style 2919 | 1.219 mm | 0.048 in | Drain Wire | 80 °C | -20 ░C | Chrome | Foil | Poly-Vinyl Chloride (PVC) | Multi-Pair | Foam Polyethylene (FPE) | 0.421 in | 10.69 mm | 12 | 7 | 32 AWG | 24 AWG | Copper Tinned | 100 ft | 30.5 m |
