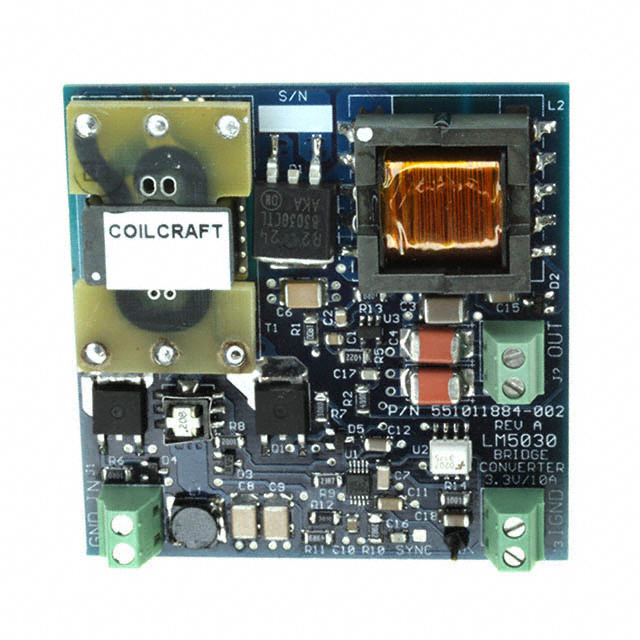

LM5030 CURRENT MODE PWM CONTROLLER 3.3V OUTPUT EVALUATION BOARD

Part	Outputs and Type	Outputs and Type	Regulator Topology	Main Purpose	Voltage - Output	Current - Output	Utilized IC / Part	Supplied Contents	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Package / Case [x]	Package / Case [x]	Frequency - Switching	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Duty Cycle (Max) [Max]	Supplier Device Package	Mounting Type	Control Features	Function	Number of Outputs	Output Configuration	Topology	Output Phases	Output Type
Texas Instruments LM5030EVAL	Isolated	1	Buck	DC/DC Step Down	3.3 V	10 A	LM5030	Board(s)	Fully Populated	75 V	36 V
Texas Instruments LM5030MMX												10-MSOP 10-TFSOP	3 mm	0.118 in	200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-VSSOP	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
Texas Instruments LM5030MM/NOPB												10-MSOP 10-TFSOP	3 mm	0.118 in	200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-VSSOP	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
Texas Instruments LM5030SDX/NOPB												10-WDFN Exposed Pad			200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-WSON (4x4)	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
Texas Instruments LM5030SDX												10-WDFN Exposed Pad			200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-WSON (4x4)	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
Texas Instruments LM5030MMX/NOPB												10-MSOP 10-TFSOP	3 mm	0.118 in	200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-VSSOP	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
Texas Instruments LM5030SD												10-WDFN Exposed Pad			200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-WSON (4x4)	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
Texas Instruments LM5030SD/NOPB												10-WDFN Exposed Pad			200 kHz 600 kHz	90 V	14 V	105 °C	-40 °C	50 %	10-WSON (4x4)	Surface Mount	Frequency Control Soft Start	Step-Up/Step-Down	2	Isolation Capable Positive	Full-Bridge Half-Bridge Push-Pull	1	Transistor Driver
