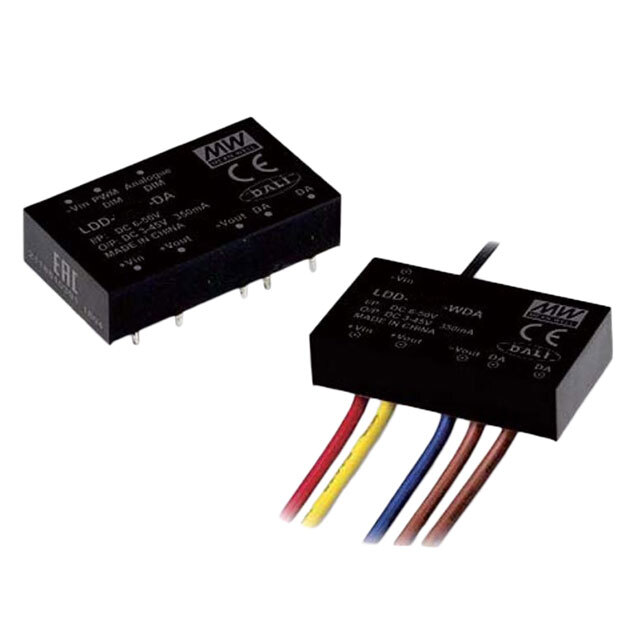

LDD-1050 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CC BUCK 3-45V 1.05A
| Part | Topology | Voltage - Input (Min) [Min] | Efficiency | Features | Voltage - Output [Max] | Voltage - Output [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Approval Agency | Dimming | Type | Power (Watts) | Package / Case | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Buck | 6 V | 95 % | Remote On/Off SCP | 45 V | 3 V | -40 °C | 85 °C | 1 | 50 V | Chassis Mount | 0.93 in | 4.34 " | 40.6 mm | 23.6 mm | 1.6 " | 110.2 mm | 1.05 A | CE EAC | Analog PWM | Constant Current | 47 W | Module Wire Leads | ||
 MEAN WELL USA Inc. | Buck | 6 V | 95 % | Remote On/Off SCP | 45 V | 3 V | -40 °C | 85 °C | 1 | 50 V | Through Hole | 0.93 in | 0.4 " | 40.6 mm | 1.6 " | 1.05 A | CE | Analog PWM | Constant Current | 16-DIP Module 8 Leads | 10.1 mm | 23.5 mm |
