Q5-2X-3/16 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 3/16" X 328.1' BLACK

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Shelf Life	Material	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Length	Length	Length

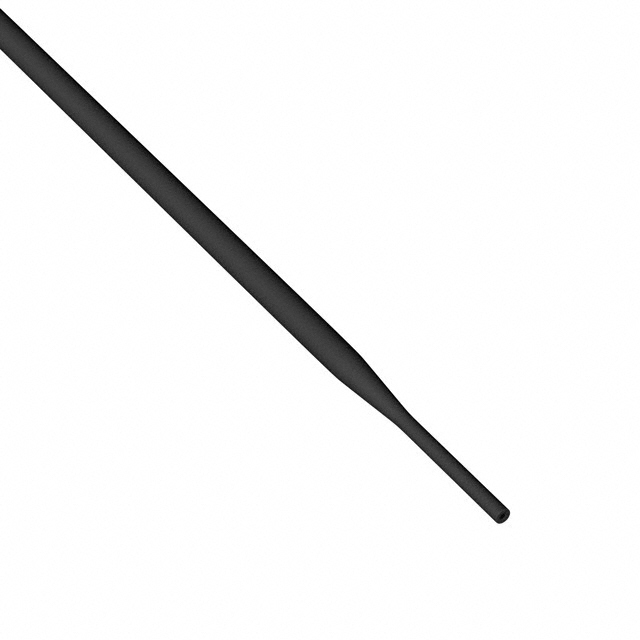

Qualtek Q5-2X-3/16-01-SS100M	0.095 "	2.41 mm	Black	1	2	40 °C	14 °F	-50 °F	40 °C	328.1 ft	100 m	0.71 mm	0.028 in	Adhesive Lined Self Extinguishing	60 Months	Polyolefin (PO)	100 °C	-45 °C	125 °C	0.187 "	4.75 mm	Tubing Flexible
Qualtek Q5-2X-3/16-01-QB6IN-24	0.095 "	2.41 mm	Black	1	2	40 °C	14 °F	-50 °F	40 °C			0.71 mm	0.028 in	Adhesive Lined Self Extinguishing	60 Months	Polyolefin (PO)	100 °C	-45 °C	125 °C	0.187 "	4.75 mm	Tubing Flexible	152.4 mm	0.5 '	6 "

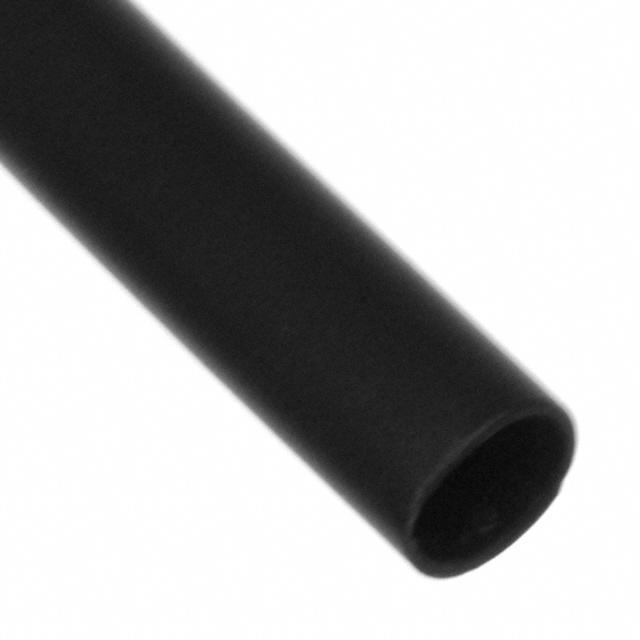

Qualtek Q5-2X-3/16-01-QB48IN-25	0.095 "	2.41 mm	Black	1	2	40 °C	14 °F	-50 °F	40 °C	4 ft	1.22 m	0.71 mm	0.028 in	Adhesive Lined Self Extinguishing	60 Months	Polyolefin (PO)	100 °C	-45 °C	125 °C	0.187 "	4.75 mm	Tubing Flexible
