35681204 Series
Manufacturer: SAB North America
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

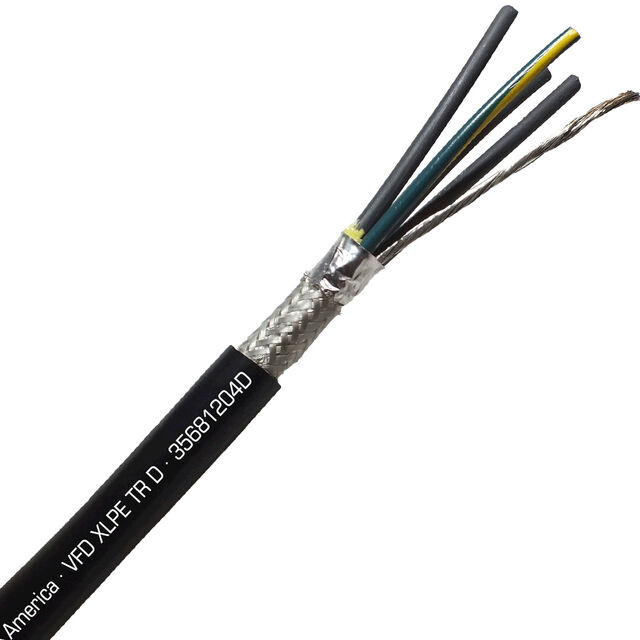

CABLE 4COND 12AWG BLK SHLD 1=1FT
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Conductor Material | Jacket (Insulation) Material | Wire Gauge | Cable Type | Conductor Strand Count | Conductor Strand Gauge | Length | Conductor Insulation | Shield Type | Features | Number of Conductors | Jacket (Insulation) Diameter | Usage | Ratings | Jacket Color | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SAB North America | -40 °C | 105 °C | Copper Tinned | Copolymer Poly-Vinyl Chloride (PVC) | 12 AWG | Conductor Multi | 65 | 30 | Enter Number of Feet in Order Quantity | Irradiated Polyethylene (XLPE) | Braid Foil | Direct Burial Drain Wire Flame Retardant Oil Resistant UV Resistant | 4 | 0.592 in | Industrial Motor Supply Servo Motor Variable Frequency Drive (VFD) | Style TC-ER UL | Black | Copper Tinned |
