171400 Series

Manufacturer: Molex

Catalog

IMPEL 90 OHM, 6 PAIR RIGHT-ANGLE DAUGHTERCARD, 1.90MM PITCH, RIGHT GUIDED, 16 COLUMNS, 192 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.36MM, KEYING ORIENTATION A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Termination	Color	Connector Type	Number of Positions Loaded	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Number of Positions	Contact Layout, Typical	Number of Columns	Connector Usage	Connector Style	Mounting Type	Voltage Rating	Contact Layout, Typical	Current Rating (Amps)
Molex 1714005126	-55 C	85 °C	UL94 V-0	Shielded	Press-Fit	Black	Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	192	96 Differential Pairs	16	Coplanar Daughtercard	Impel Guide Right	Right Angle Through Hole

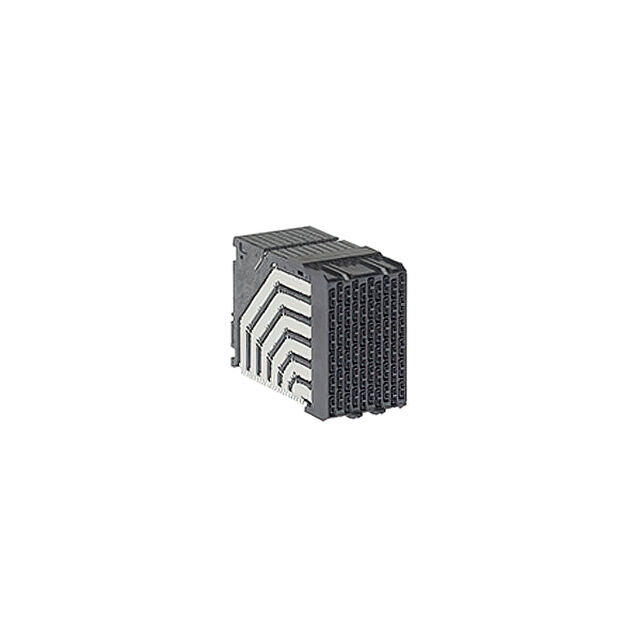

Molex 1714001022			UL94 V-0		Press-Fit		Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	144	72 Differential Pairs	12	Daughtercard	Impel™	Right Angle Through Hole

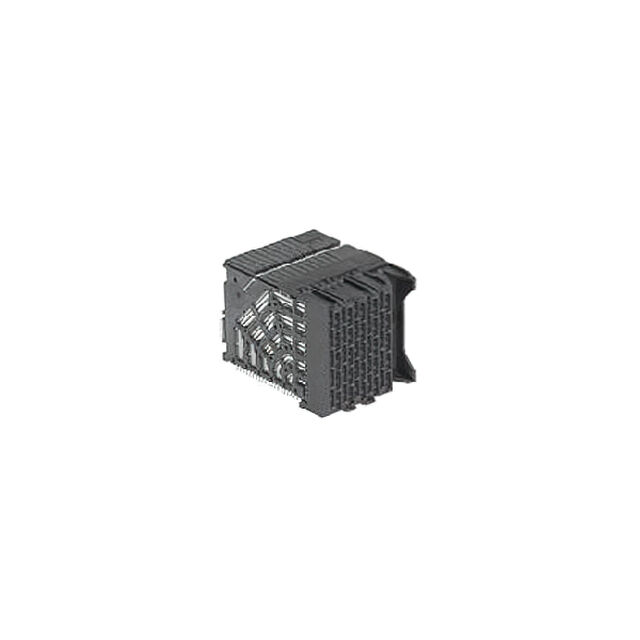

Molex 1714005020	-55 C	85 °C	UL94 V-0	Board Guide	Press-Fit	Black	Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	120	60 Differential Pairs	10	Coplanar Daughtercard	Impel Guide Right	Right Angle Through Hole

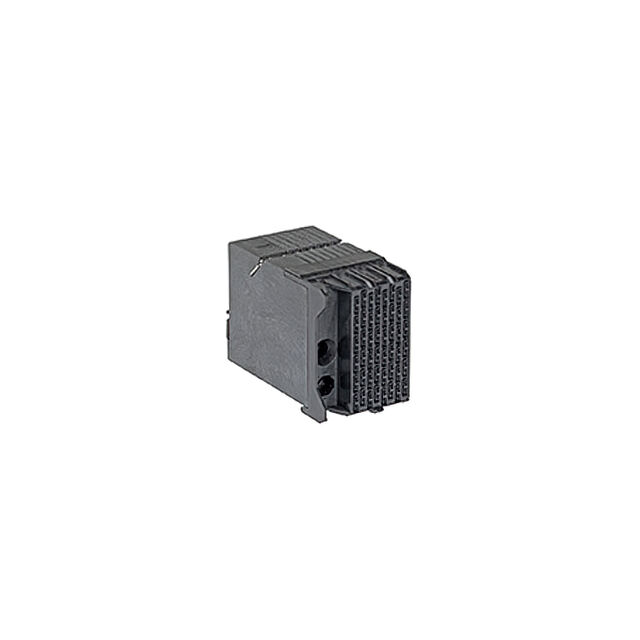

Molex 1714003020	-55 C	85 °C	UL94 V-0		Press-Fit	Black	Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	120	60 Differential Pairs	10	Coplanar Daughtercard	Impel Guide Left	Right Angle Through Hole

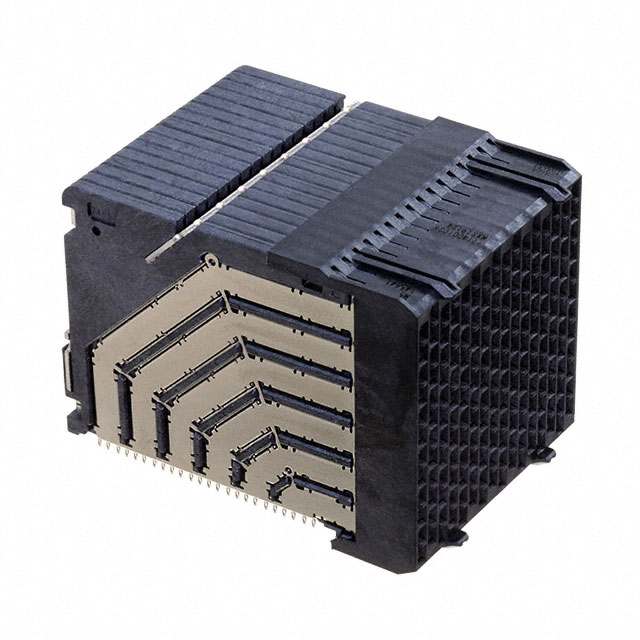

Molex 1714001026	-55 C	85 °C	UL94 V-0		Press-Fit	Black	Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	192	96 Differential Pairs	16	Daughtercard	Impel™	Right Angle Through Hole

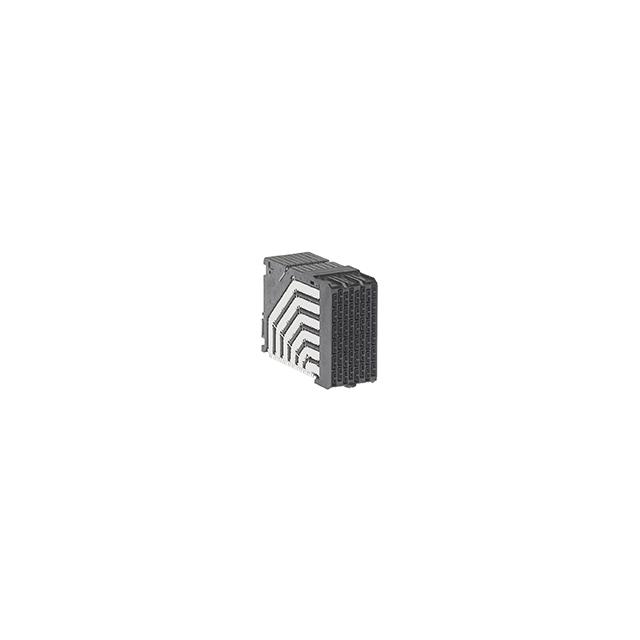

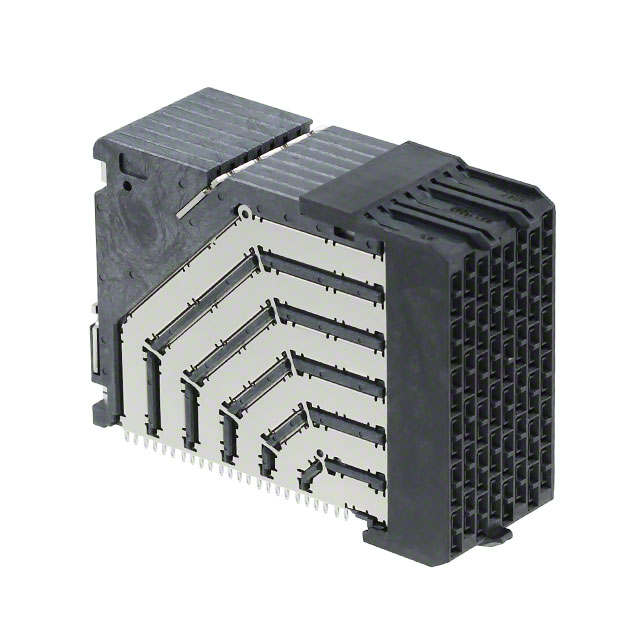

Molex 1714001038	-55 C	85 °C	UL94 V-0	Shielded	Press-Fit	Black	Blade Sockets Female Sockets Receptacle	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12			8	Daughtercard	Impel™	Right Angle Through Hole	150 VDC	48 Differential Pairs
Molex 1714003126					Press-Fit	Black	Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	192	96 Differential Pairs	16	Coplanar Daughtercard	Impel Guide Left	Right Angle Through Hole

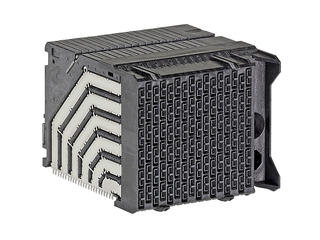

Molex 1714005038	-55 C	85 °C	UL94 V-0	Mating Guide	Press-Fit	Black	Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	96		8	Daughtercard Orthogonal	Impel Guide Right	Right Angle Through Hole	29.9 VAC/DC		75 mA
Molex 1714001020			UL94 V-0		Press-Fit		Receptacle Female Sockets	All	1.9 mm	0.075 in	30 Áin	0.76 Ám	Gold	12	120	60 Differential Pairs	10	Daughtercard	Impel™	Through Hole
