DL3 Series

Catalog

CONNECTOR, ITT CANNON DL SERIES, 60 CONTACTS, 2.54 MM, RECEPTACLE, CRIMP, 6 ROWS

Part	Note	Pitch	Pitch	Connector Usage	Connector Type	Number of Rows	Mounting Type	Number of Positions	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions Loaded

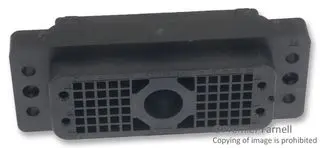

ITT Cannon, LLC DL3-60R	Contacts Not Included	0.1 "	2.54 mm	Receptacle	Housing for Non-Gendered Contacts	6	Panel Mount	60	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Black

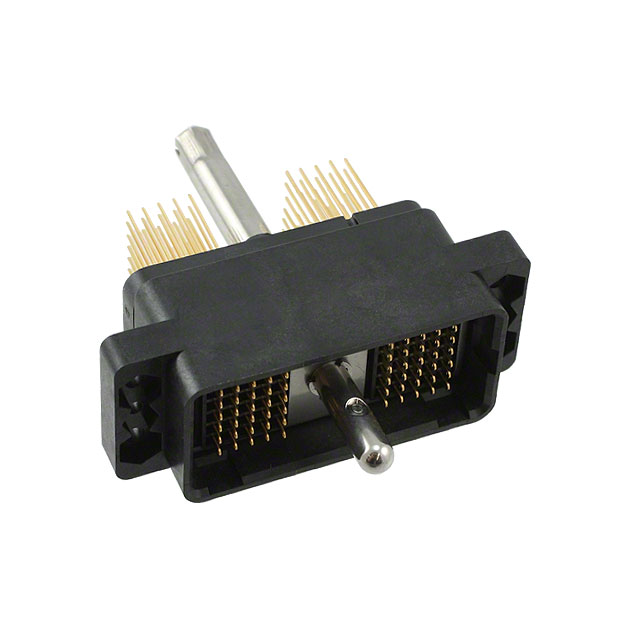

ITT Cannon, LLC DL3-60PW4A		0.1 "	2.54 mm		Plug Hermaphroditic Contacts	6	Panel Mount	60	Actuating Camshaft Zero Insertion Force (ZIF)	Black	-55 C	105 ░C	UL94 V-1	Wire Wrap	50 µin	1.27 µm	Gold	All
ITT Cannon, LLC DL3-60P	Contacts Not Included	0.1 "	2.54 mm		Housing for Non-Gendered Contacts	6	Panel Mount	60	Actuating Camshaft Zero Insertion Force (ZIF)	Black

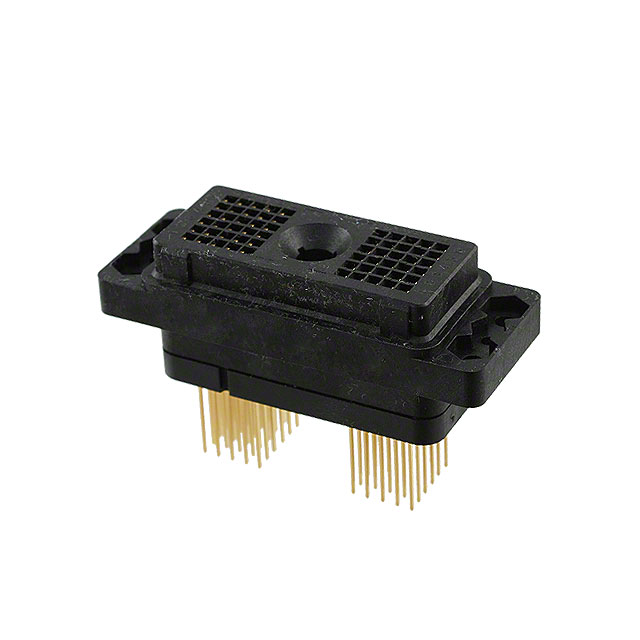

ITT Cannon, LLC DL3-60RW4B		0.1 "	2.54 mm		Receptacle Hermaphroditic Contacts	6	Panel Mount	60	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Black	-55 C	105 ░C	UL94 V-1	Wire Wrap	50 µin	1.27 µm	Gold	All
