G800W59 Series

Catalog

PIN HEADER 2.54MM PITCH STR DIP,

Part	Contact Finish Thickness - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Insulation Height	Insulation Height	Termination	Contact Length - Post	Contact Length - Post	Connector Type	Mounting Type	Number of Rows [custom]	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Material	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Insulation Color	Shrouding

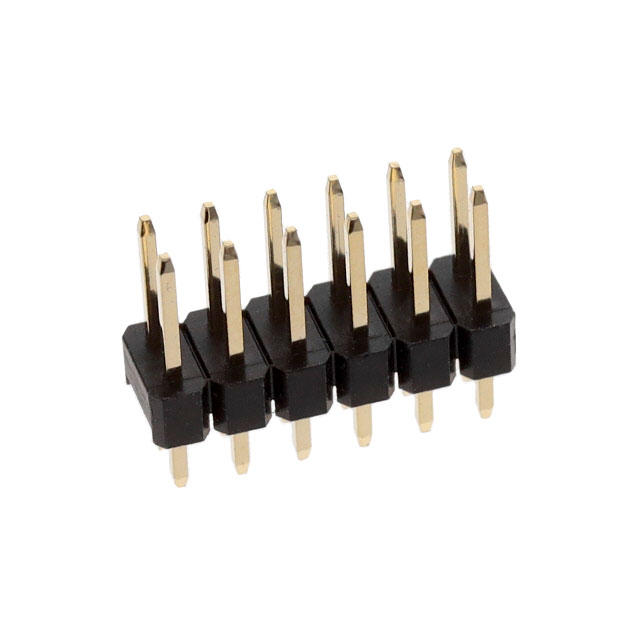

Amphenol ICC (Commercial Products) G800W590018EU	Flash	Push-Pull	0.1 "	2.54 mm	12	Gold	0.24 in	6.1 mm	Brass	0.098 "	2.5 mm	Solder	0.118 in	3 mm	Header	Through Hole	2	3 A	Square	UL94 V-0	0.1 in	2.54 mm	11.6 mm	0.457 in	Male Pin	Nylon 6T Polyamide (PA6T)	All	Gold	105 ░C	-25 °C	Flash	Black	Unshrouded
