R1966ABL Series
Manufacturer: E-Switch
Beta
⌘K
ROCKER SWITCH, ON-OFF, SPST, ILLUMINATED, PANEL MOUNT, BLACK, R1966 SERIES
| Part | Electrical Life | Mechanical Life | Actuator Type | Voltage Rating - AC | Actuator Marking | Circuit | Mounting Type | Switch Function | Illumination Type, Color | Color - Actuator/Cap | Illumination Voltage (Nominal) | Termination Style | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

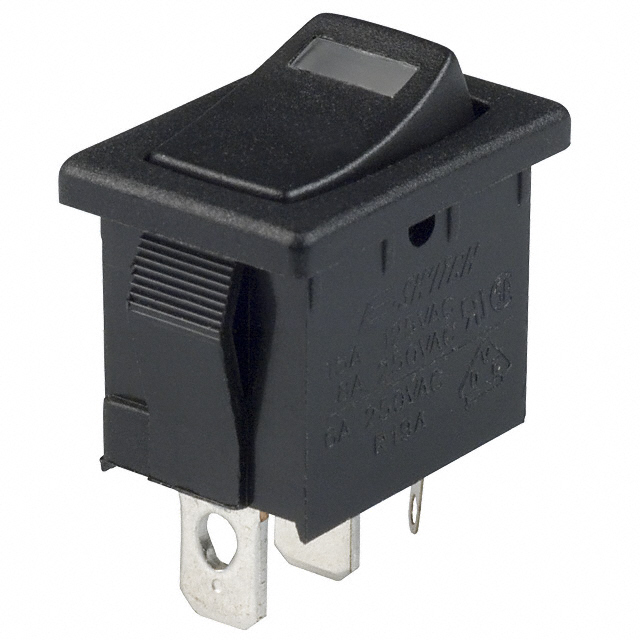

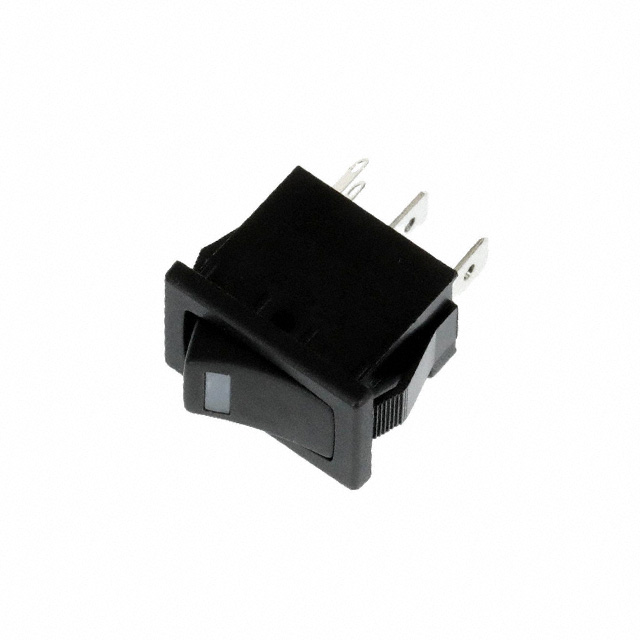

 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | Panel Mount Snap-In | On-Off | Green LED | Black | 2.2 VDC | Quick Connect | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C |
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) | 125 V | O I | SPST | Panel Mount Right Angle Snap-In | On-Off | Black | PC Pin | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C | ||
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) | 125 V | O I | SPST | Panel Mount Right Angle Snap-In | On-Off | Black | PC Pin | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C | ||
E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | Panel Mount Snap-In | On-Off | LED Yellow | Black | 2.1 VDC | Quick Connect | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C |

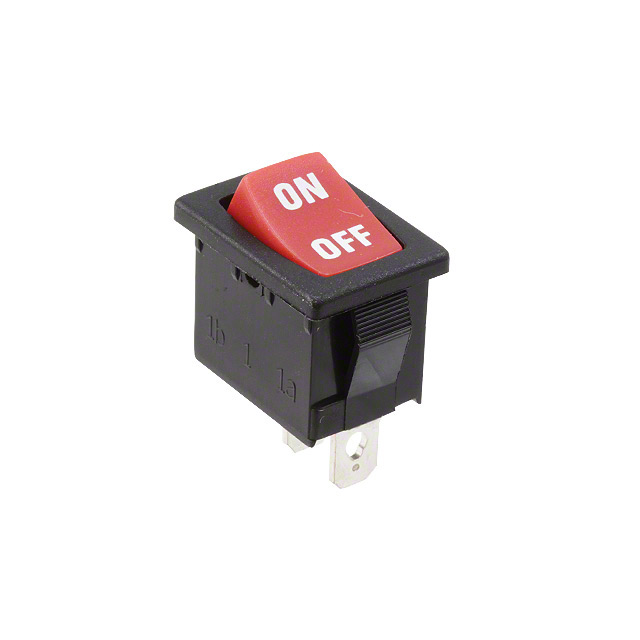

 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) | 125 V | ON OFF | SPST | Panel Mount Snap-In | On-Off | Red | Quick Connect | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C | ||
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | Panel Mount Snap-In | On-Off | Green LED | Black | 2.2 VDC | Quick Connect | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C |
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) | 125 V | - = - = | SPST | Panel Mount Snap-In | On-Off | Black | Quick Connect | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C | ||
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | Panel Mount Snap-In | On-Off | LED Red | Black | 2 VDC | PC Pin | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C |
E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) - Illuminated | 125 V | No Marking | SPST | Panel Mount Snap-In | On-Off | Green LED | Red | 2.2 VDC | Quick Connect | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C |
 E-Switch | 10000 Cycles | 30000 Steps | Concave (Curved) | 125 V | ON OFF | SPST | Panel Mount Snap-In | On-Off | Black | PC Pin | 15 A | 19.4 mm | 13 mm | -30 ░C | 65 °C |
