29033 Series

Catalog

GENERAL PURPOSE RELAY, RIF-0 SERIES, INTERFACE, NON LATCHING, SPST-NO, 24 VDC, 6 A ROHS COMPLIANT: YES

Part	Coil Resistance	Coil Type	Features	Relay Type	Approval Agency	Mounting Type	Operate Time	Contact Material	Switching Voltage	Coil Voltage	Contact Rating (Current)	Coil Current	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Termination Style	Switching Voltage [Max]
Phoenix Contact 2903361	2.67 kOhms	Non Latching	Diode Lighted Indicator Socket Included	General Purpose	CSA	DIN Rail	5 ms	Silver Tin Oxide (AgSnO)	250 VAC 250 VDC	24 VDC	6 A	9 mA	8 ms	60 °C	-40 C	SPST-NO (1 Form A)	Spring Terminal

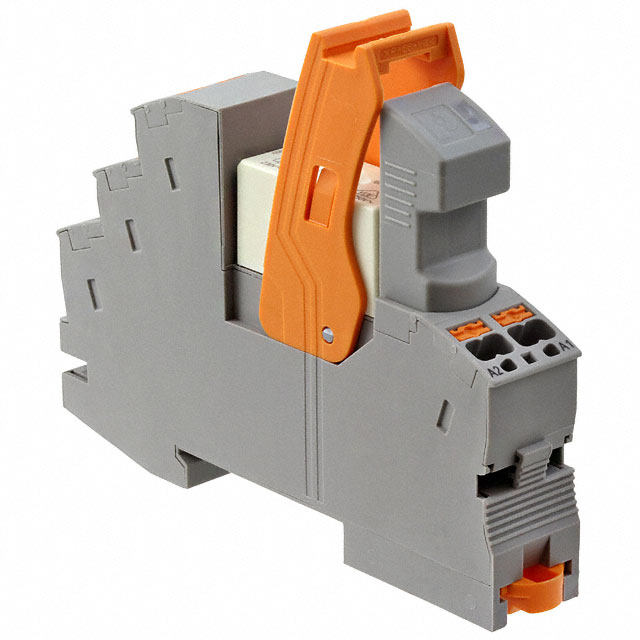

Phoenix Contact 2903335	38.3 kOhms	Non Latching	Lighted Indicator Socket Included Varistor	General Purpose		DIN Rail	12 ms	Gold (Au) Silver Nickel (AgNi)		230 VAC	50 mA	6 mA	20 ms	50 °C	-40 C	SPDT (1 Form C)	Spring Terminal	30 VAC 36 VDC

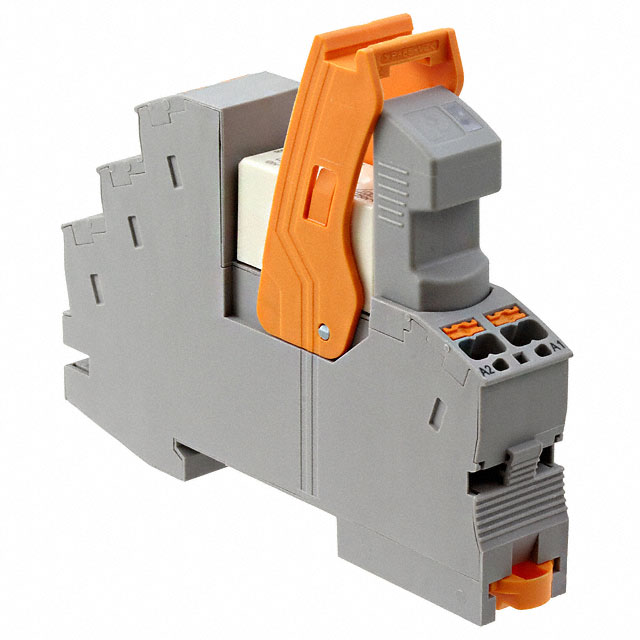

Phoenix Contact 2903336	15 kOhms	Non Latching	Lighted Indicator Socket Included Varistor	General Purpose		DIN Rail	12 ms	Gold (Au) Silver Nickel (AgNi)		120 VAC	50 mA		20 ms	50 °C	-40 C	SPDT (1 Form C)	Spring Terminal	30 VAC 36 VDC
Phoenix Contact 2903375	750 Ohms	Non Latching	Diode Lighted Indicator Socket Included	General Purpose	CSA	DIN Rail	5 ms	Silver Tin Oxide (AgSnO)	250 VAC 250 VDC	12 VDC	6 A	16 mA	8 ms	60 °C	-40 C	SPDT (1 Form C)	Screw Terminal
Phoenix Contact 2903346	1.33 kOhms	Non Latching	Diode Lighted Indicator Socket Included	General Purpose		DIN Rail	8 ms	Silver Nickel (AgNi)		24 VDC	50 mA	18 mA	10 ms	70 °C	-40 C	DPDT (2 Form C)	Screw Terminal	30 VAC 36 VDC
Phoenix Contact 2903313	342.9 Ohms	Non Latching	Lighted Indicator Socket Included Varistor	General Purpose	CSA	DIN Rail	15 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	24 VAC	8.5 A	70 mA	20 ms	50 °C	-40 C	DPDT (2 Form C)	Spring Terminal

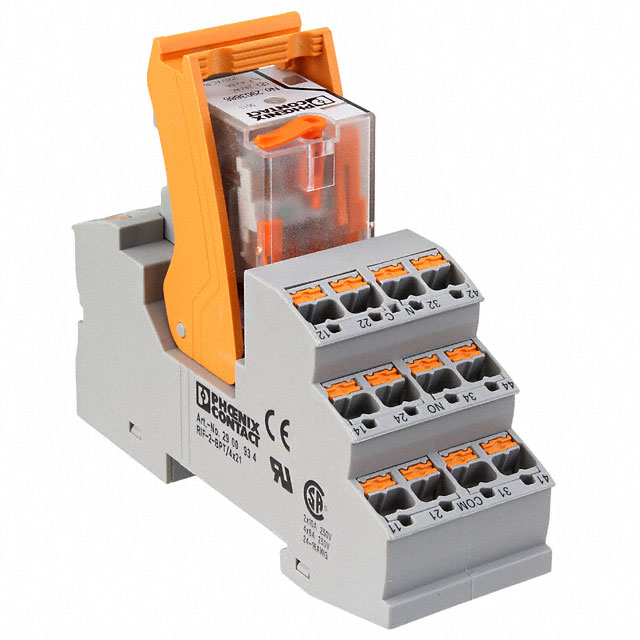

Phoenix Contact 2903306	342.9 Ohms	Non Latching	Lighted Indicator Socket Included Varistor	General Purpose	CSA	DIN Rail	15 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	24 VAC	5 A	70 mA	20 ms	50 °C	-40 C	4PDT (4 Form C)	Spring Terminal
Phoenix Contact 2903328	15 kOhms	Non Latching	Lighted Indicator Socket Included Varistor	General Purpose		DIN Rail	12 ms	Gold (Au) Silver Nickel (AgNi)		120 VAC	50 mA		20 ms	50 °C	-40 C	DPDT (2 Form C)	Spring Terminal	30 VAC 36 VDC
Phoenix Contact 2903353	727 Ohms	Non Latching	Lighted Indicator Socket Included Varistor	General Purpose		DIN Rail	12 ms	Silver Nickel (AgNi)		24 VAC	50 mA	33 mA	20 ms	50 °C	-40 C	SPDT (1 Form C)	Screw Terminal	30 VAC 36 VDC

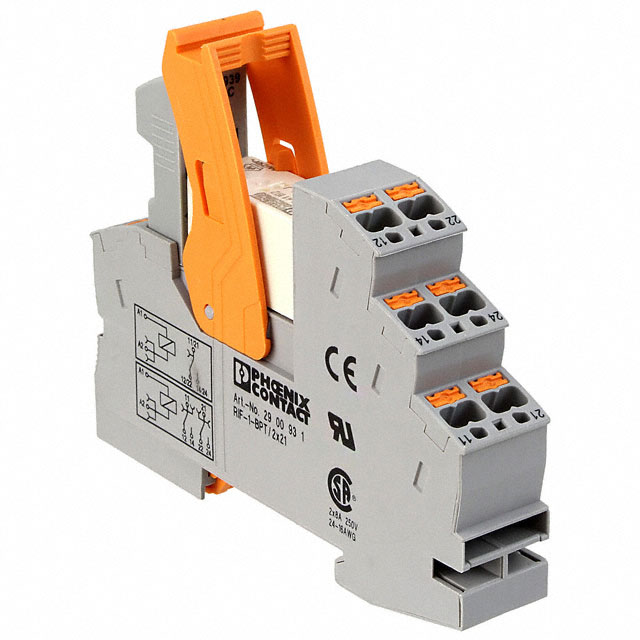

Phoenix Contact 2903334	1.33 kOhms	Non Latching	Diode Lighted Indicator Socket Included	General Purpose	CSA	DIN Rail	8 ms	Silver Nickel (AgNi)	250 VAC 250 VDC	24 VDC	8 A	18 mA	10 ms	70 °C	-40 C	DPDT (2 Form C)	Spring Terminal
