67250 Series

Catalog

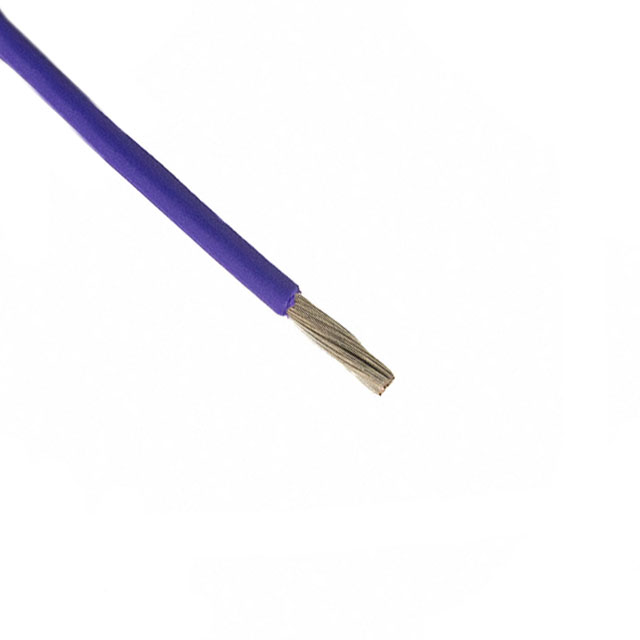

HOOK-UP STRND 14AWG VIOLET 164'

Part	Cable Type	Wire Gauge	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 67250 VI321	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Violet	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	164 ft	50 m	0.012 in	0.3 mm	Copper Tinned
ALPHA WIRE 67250 GY033	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Green Yellow Stripe	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	328.1 ft	100 m	0.012 in	0.3 mm	Copper Tinned

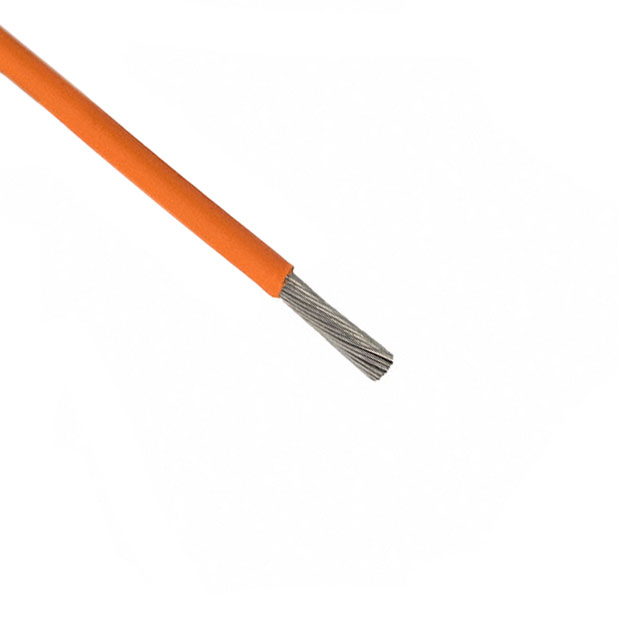

ALPHA WIRE 67250 OR321	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Orange	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	164 ft	50 m	0.012 in	0.3 mm	Copper Tinned
ALPHA WIRE 67250 OR034	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Orange	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "			0.012 in	0.3 mm	Copper Tinned	500 m	1640.4 ft
ALPHA WIRE 67250 GR033	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Green	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	328.1 ft	100 m	0.012 in	0.3 mm	Copper Tinned

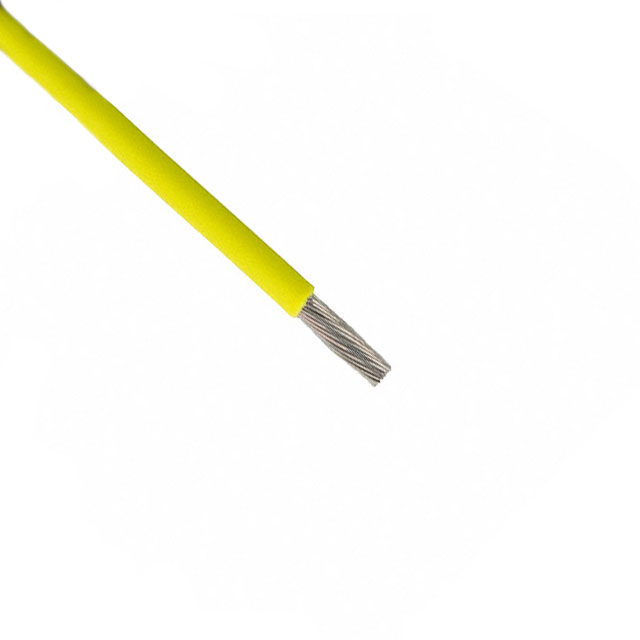

ALPHA WIRE 67250 YL033	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Yellow	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	328.1 ft	100 m	0.012 in	0.3 mm	Copper Tinned
ALPHA WIRE 67250 GY034	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Green Yellow Stripe	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "			0.012 in	0.3 mm	Copper Tinned	500 m	1640.4 ft
ALPHA WIRE 67250 WH034	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140		600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "			0.012 in	0.3 mm	Copper Tinned	500 m	1640.4 ft
ALPHA WIRE 67250 GY321	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Green Yellow Stripe	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	164 ft	50 m	0.012 in	0.3 mm	Copper Tinned

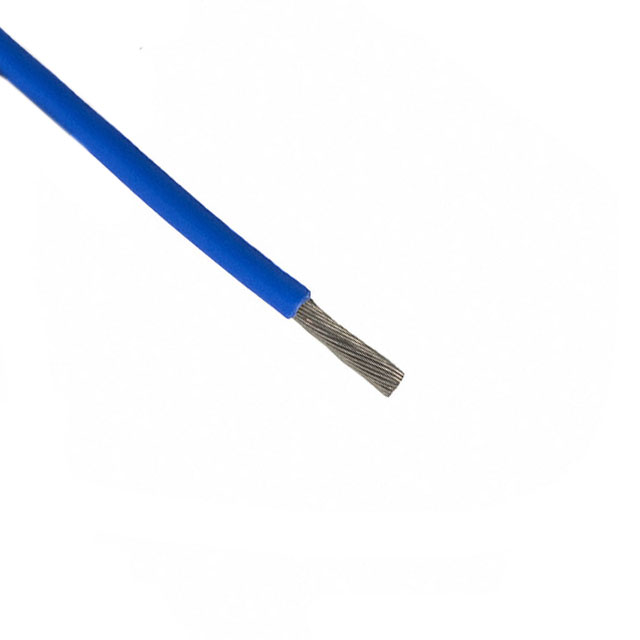

ALPHA WIRE 67250 BL321	Hook-Up	13.5 AWG	UL Style 11028	-40 °C	105 ░C	0.0063 in	140	Blue	600 V	Polyphenylene Ether Modified (mPPE)	2.72 mm	0.107 "	164 ft	50 m	0.012 in	0.3 mm	Copper Tinned
