DS850 Series

Catalog

AC/DC CONVERTER 24V 850W

Part	Current - Output 1	Applications	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
ARTESYN / Advanced Energy DS850-5	35 A	ITE (Commercial)	CB CE	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	Front End	24 V	264 VAC	90 VAC	Rack Mount	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	1	50 °C	-10 °C
ARTESYN / Advanced Energy DS850-9	17.5 A	ITE (Commercial)	CB CE	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	Front End	48 V	264 VAC	90 VAC	Rack Mount	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	1	50 °C	-10 °C

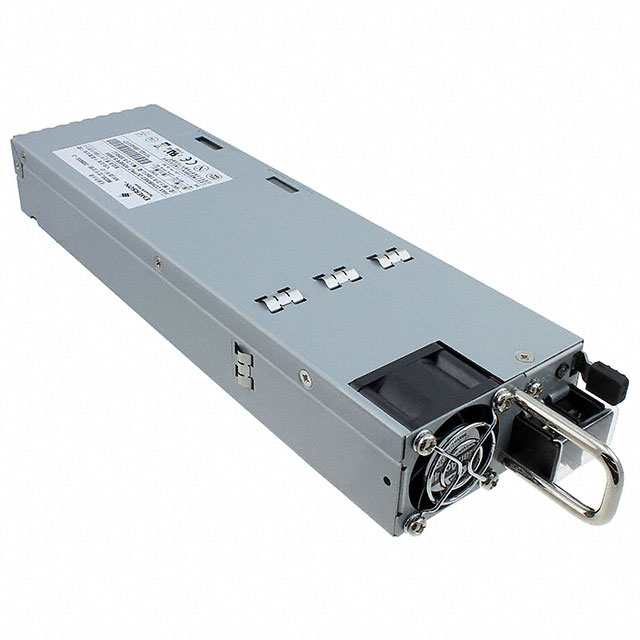

ARTESYN / Advanced Energy DS850DC-3		ITE (Commercial)		1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	Front End	12 V			Rack Mount		1	50 °C	-5 °C	80 %	70 A	-72 V	-39 V
