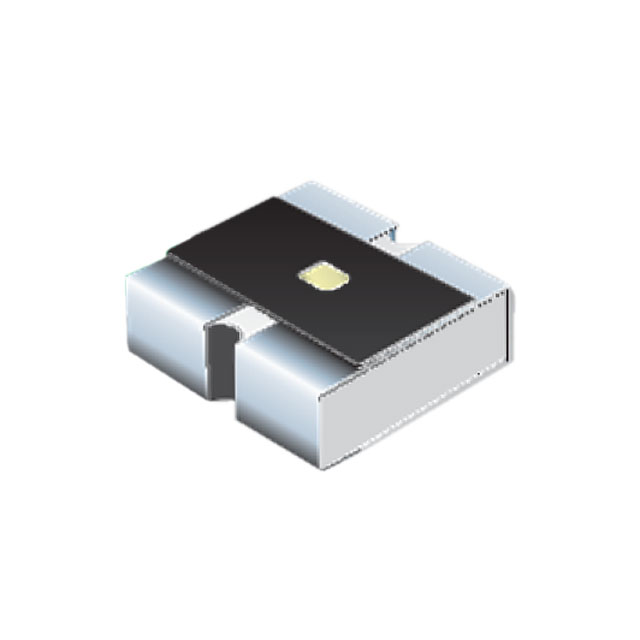

CAY06 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RESARRAYAS 2X0201 27R 5% 31MW CONVEX /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES
| Part | Resistance (Ohms) [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) | Number of Pins | Circuit Type | Power Per Element | Tolerance | Mounting Type | Number of Resistors | Temperature Coefficient | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 27 Ohms | 0.016 in | 0.4 mm | 4 | Isolated | 31 mW | 5 % | Surface Mount | 2 | 200 ppm/°C | 0302 (0805 Metric) Convex Long Side Terminals | 0.6 mm | 0.033 in | 0.024 " | 0.85 mm | -55 C | 125 °C | |
Bourns Inc. | 0.016 in | 0.4 mm | 4 | Isolated | 31 mW | 5 % | Surface Mount | 2 | 200 ppm/°C | 0302 (0805 Metric) Convex Long Side Terminals | 0.6 mm | 0.033 in | 0.024 " | 0.85 mm | -55 C | 125 °C | 15 Ohms |
