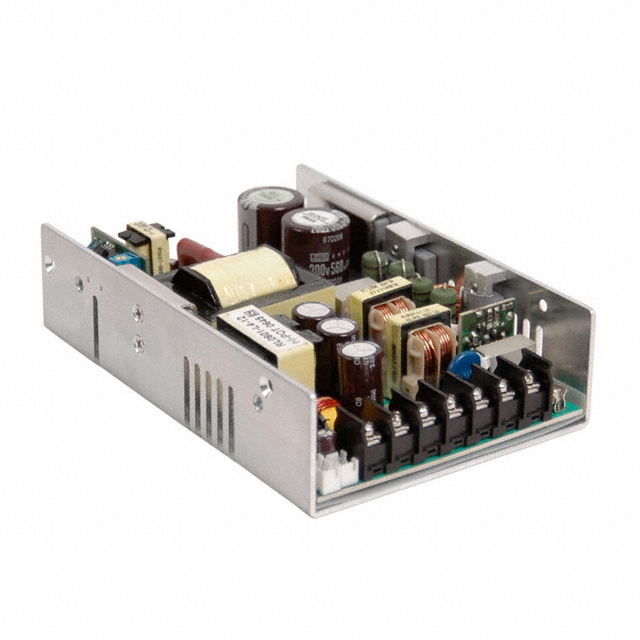

VF-S320 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 54V 320W

Part	Mounting Type	Voltage - Isolation	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Operating Temperature [Max]	Standard Number	Number of Outputs	Type	Features	Current - Output 1	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1 [custom]
CUI Inc. VF-S320-54A-1	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Open Frame	Adjustable Output PFC Universal Input	3.33 A	320 W	54 V	38.1 mm	152.4 mm	4 "	1.5 in	101.6 mm	6 "
CUI Inc. VF-S320-24A-CFS	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class A 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Enclosed	Adjustable Output PFC Universal Input	13.33 A	320 W	24 V	40.6 mm	177.8 mm	4 "	1.6 "	101.6 mm	7 "
CUI Inc. VF-S320-18A-CFS-1	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 60950-1 61000-3-2 61000-3-3 62368-1	1	Enclosed	Adjustable Output PFC Standby Output	17.78 A	320 W	18 V	39.3 mm	177.8 mm	4 "	1.55 "	101.6 mm	7 "
CUI Inc. VF-S320-24A-CFS-1	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Enclosed	Adjustable Output PFC Standby Output	13.33 A	320 W	24 V	39.3 mm	177.8 mm	4 "	1.55 "	101.6 mm	7 "
CUI Inc. VF-S320-36A-CFS	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Enclosed	Adjustable Output PFC	8.89 A	320 W		40.6 mm	177.8 mm	4 "	1.6 "	101.6 mm	7 "	36 V
CUI Inc. VF-S320-48A-1	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Open Frame	Adjustable Output PFC Universal Input	3.75 A	320 W	48 V	38.1 mm	152.4 mm	4 "	1.5 in	101.6 mm	6 "
CUI Inc. VF-S320-18A-1	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Open Frame	Adjustable Output PFC Universal Input	10 A	320 W	18 V	38.1 mm	152.4 mm	4 "	1.5 in	101.6 mm	6 "
CUI Inc. VF-S320-09A	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Open Frame	Adjustable Output PFC Universal Input	32 A	320 W	9 V	38.1 mm	152.4 mm	4 "	1.5 in	101.6 mm	6 "

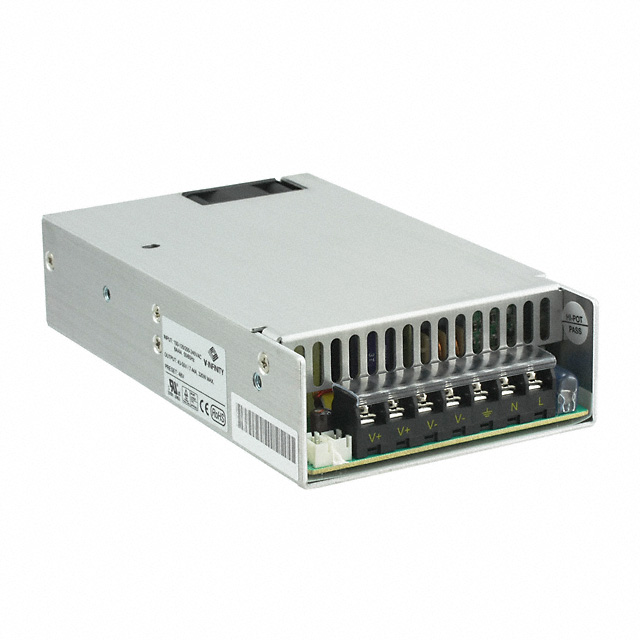

CUI Inc. VF-S320-48A-CFS	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class A 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Enclosed	Adjustable Output PFC Universal Input	6.67 A	320 W	48 V	40.6 mm	177.8 mm	4 "	1.6 "	101.6 mm	7 "
CUI Inc. VF-S320-18A-CFS	Chassis Mount	3000 V	CB Scheme EN IEC SIQ TUV UL	83 %	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	Enclosed	Adjustable Output PFC Universal Input	17.78 A	320 W	18 V	40.6 mm	177.8 mm	4 "	1.6 "	101.6 mm	7 "
