SMP253M Series

Manufacturer: KEMET

Catalog

SAFETY CAPACITOR, METALLIZED PAPER, 5045 [127114 METRIC], 2200 PF, ± 20%, Y2, SURFACE MOUNT

Part	Capacitance	Tolerance	Termination	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Mounting Type	Voltage Rating - DC	Voltage Rating - DC	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC

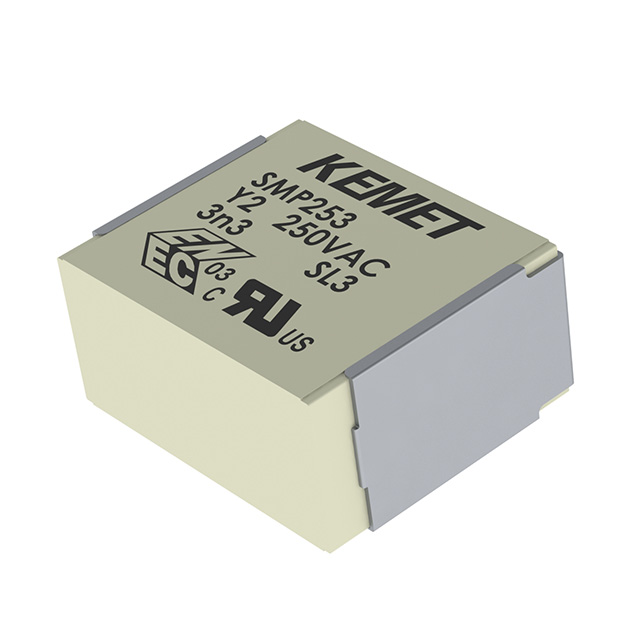

KEMET SMP253MA4220MTR24	2200 pF	20 %	Solder Pads	Y2	12.7 mm	0.5 "	0.453 in	11.5 mm	EMI RFI Suppression	Surface Mount	1.5 kV	1.5 kV	Metallized Paper	-40 C	100 °C	Nonstandard SMD	0.264 in	6.7 mm	250 V
KEMET SMP253MA4100MTR24	0.001 µF	20 %	Solder Pads	Y2	12.7 mm	0.5 "	0.453 in	11.5 mm	EMI RFI Suppression	Surface Mount	1.5 kV	1.5 kV	Metallized Paper	-40 C	100 °C	Nonstandard SMD	0.264 in	6.7 mm	250 V
KEMET SMP253MA4390MTR24	3900 pF	20 %	Solder Pads	Y2	12.7 mm	0.5 "	0.453 in	11.5 mm	EMI RFI Suppression	Surface Mount	1.5 kV	1.5 kV	Metallized Paper	-40 C	100 °C	Nonstandard SMD	0.264 in	6.7 mm	250 V
KEMET SMP253MA4150MTR24	1500 pF	20 %	Solder Pads	Y2	12.7 mm	0.5 "	0.453 in	11.5 mm	EMI RFI Suppression	Surface Mount	1.5 kV	1.5 kV	Metallized Paper	-40 C	100 °C	Nonstandard SMD	0.264 in	6.7 mm	250 V
KEMET SMP253MA4330MTR24	0.0033 µF	20 %	Solder Pads	Y2	12.7 mm	0.5 "	0.453 in	11.5 mm	EMI RFI Suppression	Surface Mount	1.5 kV	1.5 kV	Metallized Paper	-40 C	100 °C	Nonstandard SMD	0.264 in	6.7 mm	250 V
KEMET SMP253MA4250MTR24	0.0025 µF	20 %	Solder Pads	Y2	12.7 mm	0.5 "	0.453 in	11.5 mm	EMI RFI Suppression	Surface Mount	1.5 kV	1.5 kV	Metallized Paper	-40 C	100 °C	Nonstandard SMD	0.264 in	6.7 mm	250 V
