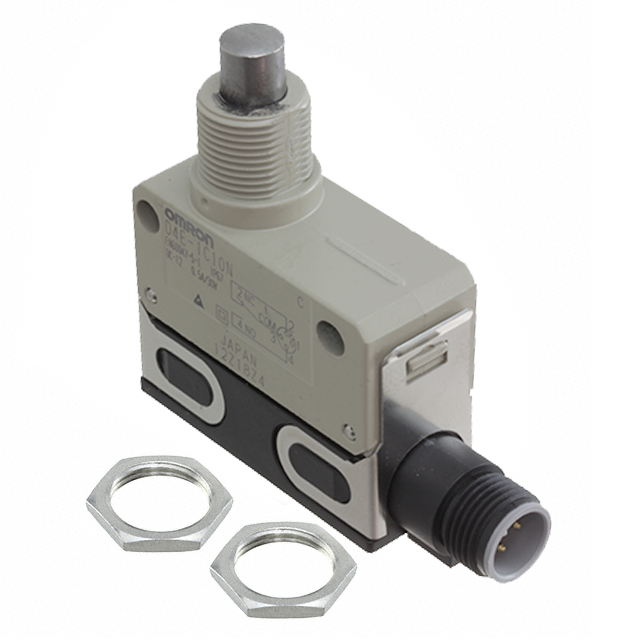

D4E-1C10 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 1A 125V
| Part | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Mechanical Life | Circuit | Operating Position | Operating Position | Overtravel | Overtravel | Voltage Rating - AC | Voltage Rating - DC | Differential Travel | Differential Travel | Mounting Type | Release Force | Switch Function | Termination Style | Ingress Protection | Current Rating (Amps) | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 1200 gf | -10 °C | 80 °C | Round (Pin Plunger) | 10000000 Cycles | SPDT | 1 in | 25.4 mm | 0.118 " | 3 mm | 125 V | 30 V | 0.1 mm | 0.004 in | Panel Mount | 500 gf | On-Mom | Connector | IP67 - Dust Tight Waterproof | 1 A | 0.06 in | 1.5 mm |
