AUB0505 Series
Manufacturer: Delta Electronics
Beta
⌘K

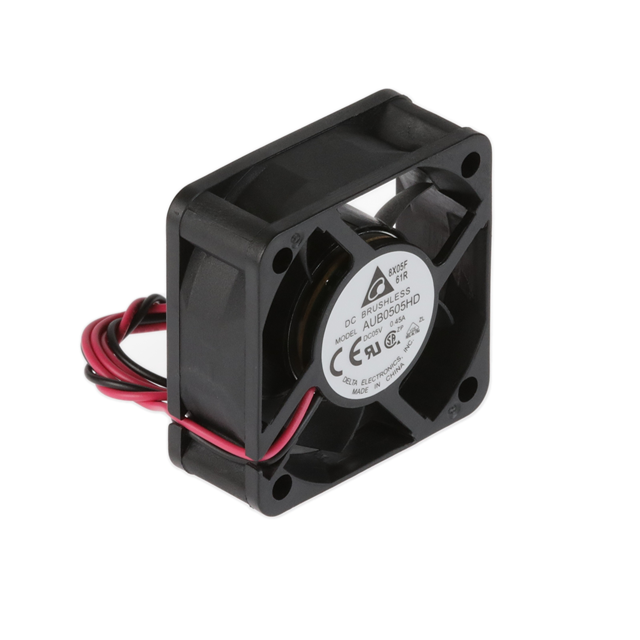

FAN AXIAL 50X20MM 5VDC WIRE
| Part | Material - Frame | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Approval Agency | Width [y] | Bearing Type | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Weight [custom] | Weight [custom] | Size / Dimension [x] | Size / Dimension [z] | Static Pressure | Static Pressure | Termination | Voltage - Rated | RPM | Noise | Power (Watts) | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 40 °C 50000 Hrs | Plastic | 0.33 A | 5.5 V | 4.5 V | CE CSA UL VDE | 20 mm | Superflo | Tubeaxial | 70 °C | -10 °C | 0.085 lb | 38.56 g | 50 mm | 50 mm | 0.182 in H2O | 45.3 Pa | 2 Wire Leads | 5 V | 5600 RPM | 33 dB(A) | 1.65 W | 0.442 m³/min | 15.8 CFM |
