4314 Series

Catalog

FAN AXIAL 119X32MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Weight [custom]	Weight [custom]	Fan Type	Bearing Type	Air Flow	Air Flow	Noise	Power (Watts)	Features	Width [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Termination	Weight	Weight	Approval Agency

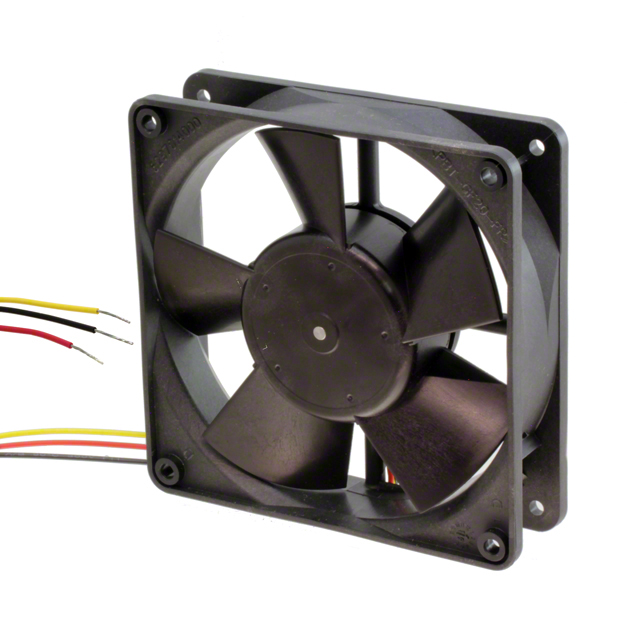

ebm-papst Inc. 4314/2	62500 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	-4 °F	167 °F	2800 RPM	220 g	0.485 lb	Tubeaxial	Ball	100.1 CFM	2.8 m³/min	45 dB(A)	5 W	Speed Sensor (Tach)	32 mm	Square	119 mm	119 mm	24 VDC	3 Wire Leads
ebm-papst Inc. 4314/12		Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced						Tubeaxial	Ball	100 CFM	2.8 m³/min	45 dB(A)	5 W		32 mm	Square	119 mm	119 mm	24 VDC	2 Wire Leads	226.8 g	0.5 lb	CE CSA UL VDE
ebm-papst Inc. 4314-147	57500 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	-4 °F	167 °F	3000 RPM	220 g	0.485 lb	Tubeaxial	Ball	106 CFM	2.97 m³/min	45 dB(A)	4.7 W		32 mm	Square	119 mm	119 mm	24 VDC	2 Wire Leads			CE CSA UL VDE
