3053 Series

Catalog

HOOK-UP STRND 20AWG YELLOW 5000'

Part	Wire Gauge	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Features	Cable Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length	Length	Length [x]	Length [x]
ALPHA WIRE 3053 YL013	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	Yellow	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 3053 BK013	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	Black	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 3053 PK001	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	Pink	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3053 WS001	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	White Gray Stripe	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3053 OR001	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	Orange	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3053 WU005	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	White Blue Stripe	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)			30.5 m	100 ft

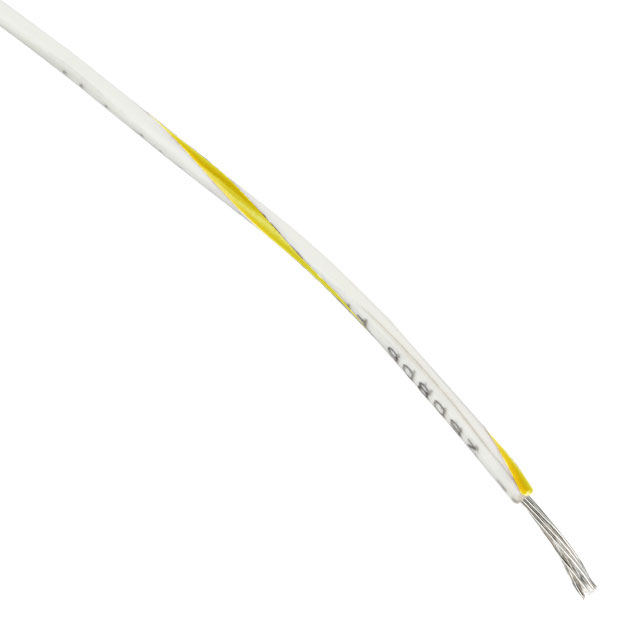

ALPHA WIRE 3053 WY001	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	White Yellow Stripe	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3053 BK005	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	Black	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)			30.5 m	100 ft

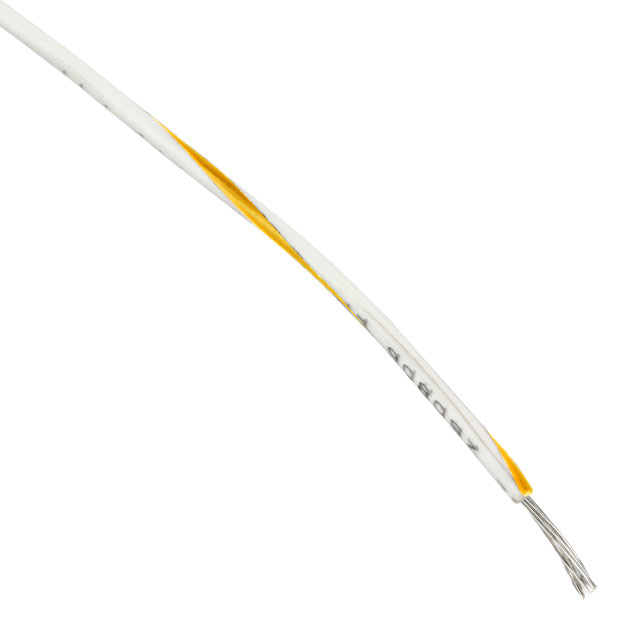

ALPHA WIRE 3053 WO001	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	White Orange Stripe	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3053 WY005	20 AWG	Copper Tinned	300 V	30 AWG	10	0.069 in	1.75 mm	-40 °C	105 ░C	ISO 10993 UL Style 1007/1569	Biological Compatibility	Hook-Up	White Yellow Stripe	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)			30.5 m	100 ft
