R40-300 Series

Catalog

STANDOFF, BRASS, M4, HEX MALE-FEMALE, 16 MM, R40 SERIES

Part	Gender	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Between Board Height [z]	Between Board Height [z]	Plating	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Between Board Height	Between Board Height

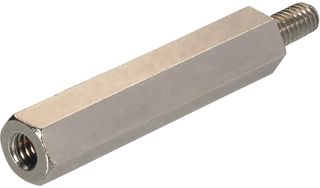

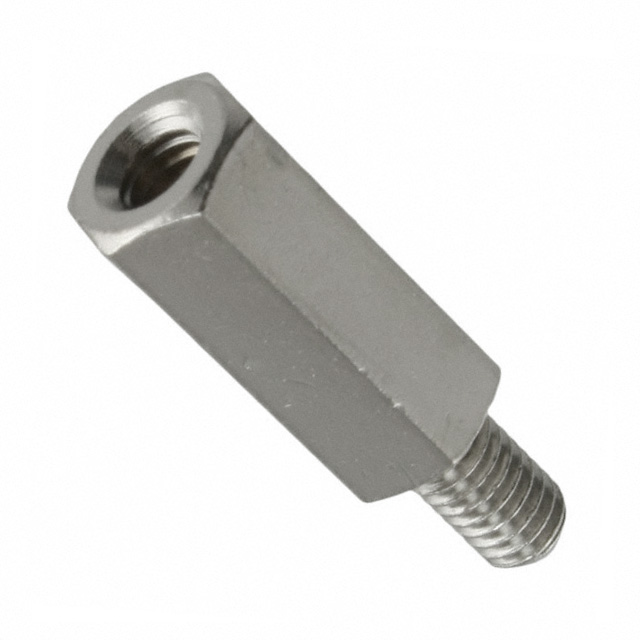

Harwin Inc. R40-3001602	Female Male	0.945 "	24 mm	M4x0.7	16 mm	0.63 in	Nickel	Hex Standoff	0.276 in	7.01 mm	Brass

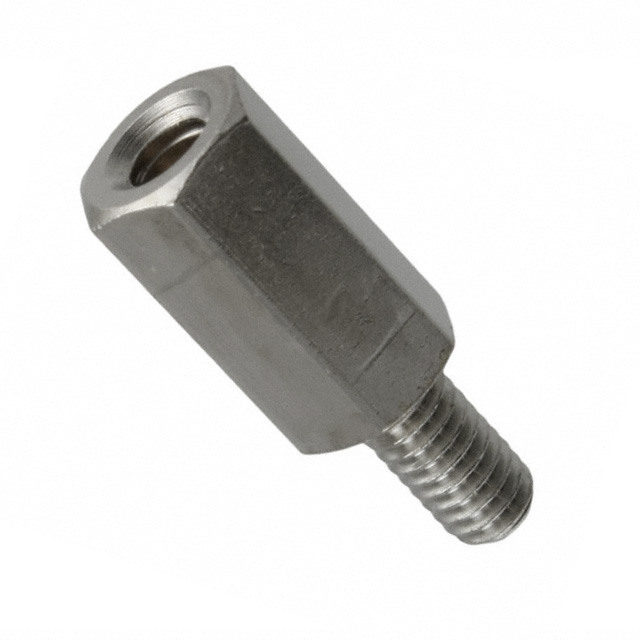

Harwin Inc. R40-3001302	Female Male	0.827 in	21 mm	M4x0.7	13 mm	0.512 in	Nickel	Hex Standoff	0.276 in	7.01 mm	Brass

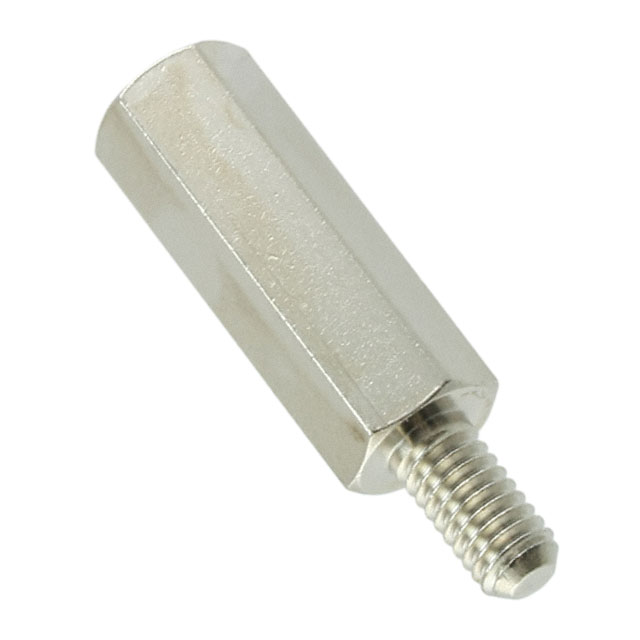

Harwin Inc. R40-3002002	Female Male			M4x0.7			Nickel	Hex Standoff	0.276 in	7.01 mm	Brass	20 mm	0.787 "

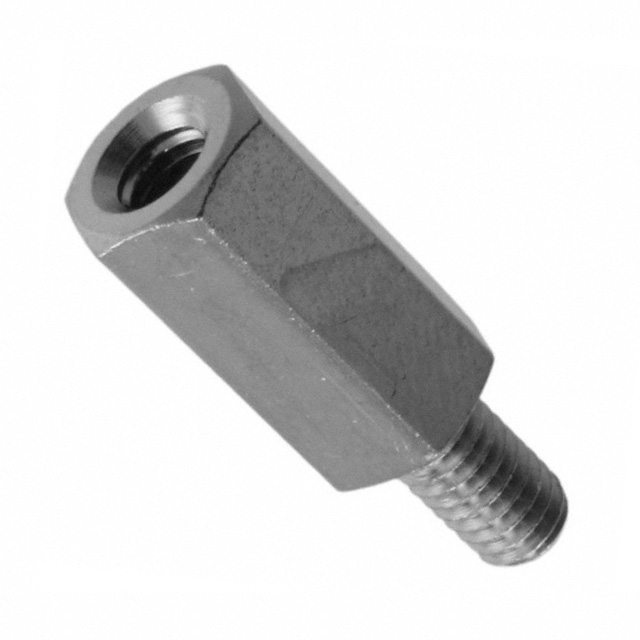

Harwin Inc. R40-3001402	Female Male	0.866 in	22 mm	M4x0.7			Nickel	Hex Standoff	0.276 in	7.01 mm	Brass	14 mm	0.551 in

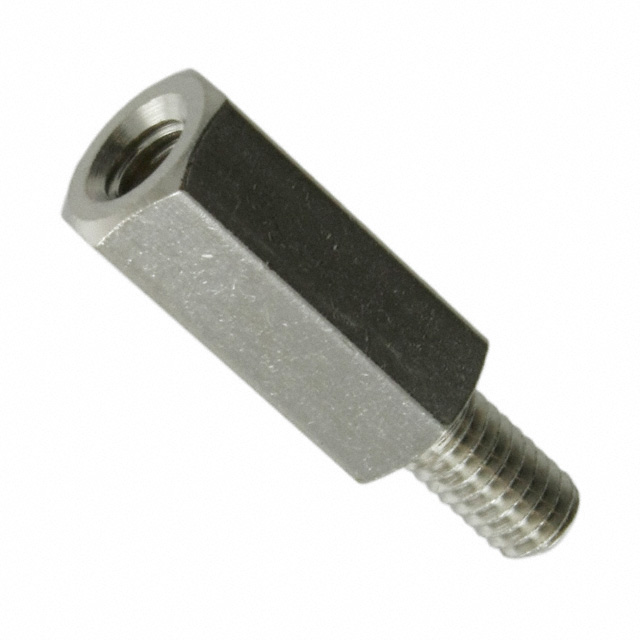

Harwin Inc. R40-3001502	Female Male	0.906 in	23 mm	M4x0.7		0.591 in	Nickel	Hex Standoff	0.276 in	7.01 mm	Brass	15 mm

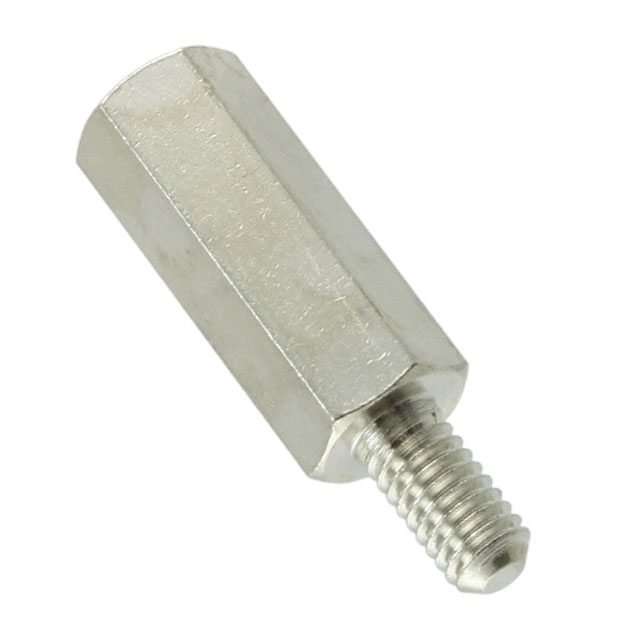

Harwin Inc. R40-3001802	Female Male	1.024 in	26 mm	M4x0.7	18 mm	0.709 in	Nickel	Hex Standoff	0.276 in	7.01 mm	Brass
Harwin Inc. R40-3002502	Female Male	1.299 in	33 mm	M4x0.7			Nickel	Hex Standoff	0.276 in	7.01 mm	Brass	25 mm	0.984 in

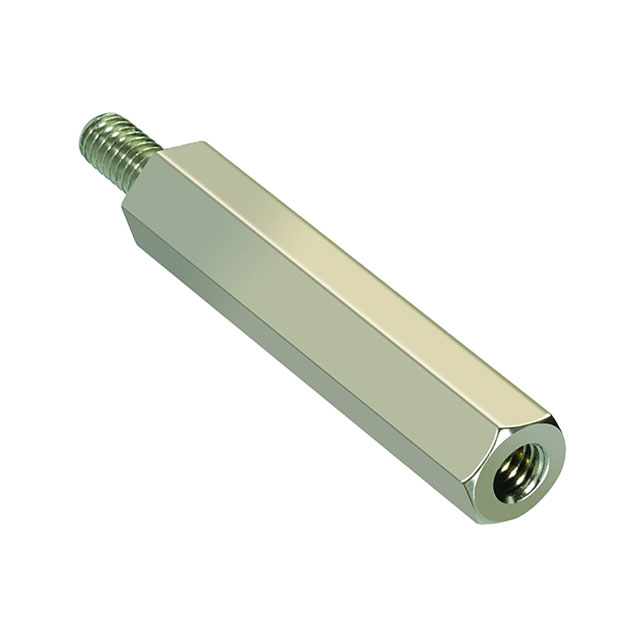

Harwin Inc. R40-3003502	Female Male	1.693 in	43 mm	M4x0.7			Nickel	Hex Standoff	0.276 in	7.01 mm	Brass	35 mm	1.378 in

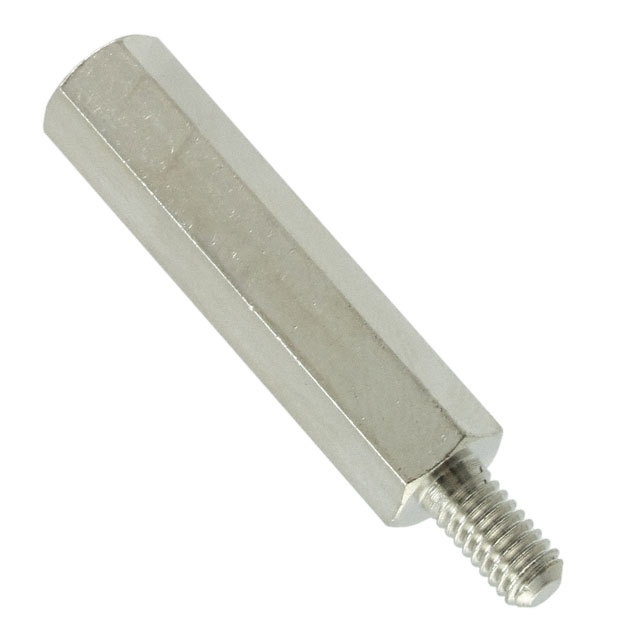

Harwin Inc. R40-3003002	Female Male	1.496 in	38 mm	M4x0.7			Nickel	Hex Standoff	0.276 in	7.01 mm	Brass	30 mm	1.181 in
