AKA87 Series

Catalog

CONN RCPT HSG MALE 17POS INLINE

Part	Shell Finish	Contact Shape	Orientation	Housing Color	Shell Size - Insert	Note	Type	Mounting Type	Shielding	Number of Positions	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Shell Material	Features	Material Flammability Rating	Fastening Type	Includes Total Count	Includes	Mounting Feature

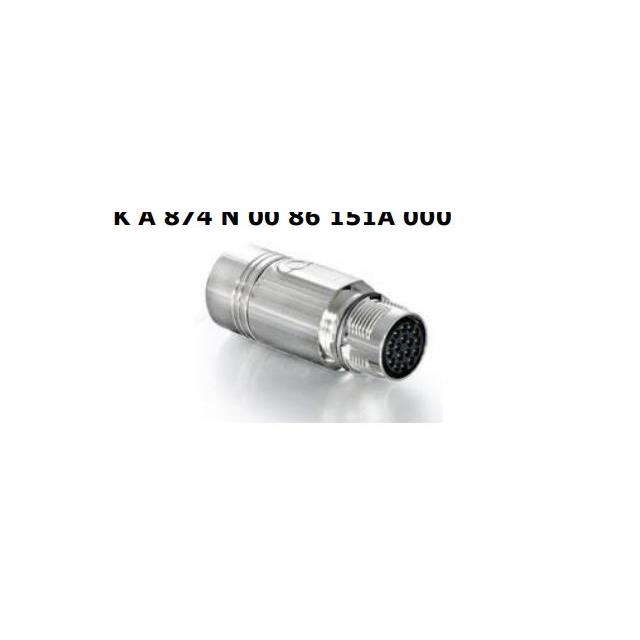

TE Intercontec AKA874N0085151A000	Nickel	Circular	Keyed	Silver	M17-17	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Shielded	17	PBT Polybutylene Terephthalate	-20 °C	130 °C	Dust Tight Water Resistant Waterproof	IP66 IP67	Receptacle Housing	Zinc Die Cast	Backshell Cable Clamp	UL94 V-0	Push-Twist	3 pcs	Backshell Cable Clamp Connector
TE Intercontec AKA874N0085051A000	Nickel	Circular	Keyed	Silver	M17-17	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Shielded	17	PBT Polybutylene Terephthalate	-20 °C	130 °C	Dust Tight Water Resistant Waterproof	IP66 IP67	Receptacle Housing	Zinc Die Cast	Backshell Cable Clamp	UL94 V-0	Push-Twist	3 pcs	Backshell Cable Clamp Connector
TE Intercontec AKA874N0085152A000	Nickel	Circular	Keyed	Silver	M17-17	Contacts Not Included	For Male Pins	Free Hanging (In-Line) Panel Mount	Shielded	17	PBT Polybutylene Terephthalate	-20 °C	130 °C	Dust Tight Water Resistant Waterproof	IP66 IP67	Receptacle Housing	Zinc Die Cast	Backshell Cable Clamp	UL94 V-0	Push-Twist	4 pcs	Backshell Cable Clamp Connector O-Ring	Bulkhead Front Side Nut
TE Intercontec AKA874N0086151A000	Nickel	Circular	Keyed	Silver	M17-17	Contacts Not Included	For Male Pins	Free Hanging (In-Line)	Shielded	17	PBT Polybutylene Terephthalate	-20 °C	130 °C	Dust Tight Water Resistant Waterproof	IP66 IP67	Receptacle Housing	Zinc Die Cast	Backshell Cable Clamp	UL94 V-0	Push-Twist	3 pcs	Backshell Cable Clamp Connector
TE Intercontec AKA876N0085152A000	Nickel	Circular	Keyed	Silver	M17-17	Contacts Not Included	For Male Pins	Free Hanging (In-Line) Panel Mount	Shielded	17	PBT Polybutylene Terephthalate	-20 °C	130 °C	Dust Tight Water Resistant Waterproof	IP66 IP67	Receptacle Housing	Zinc Die Cast	Backshell Cable Clamp	UL94 V-0	Push-Twist	4 pcs	Backshell Cable Clamp Connector O-Ring	Bulkhead Front Side Nut
