R14140 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

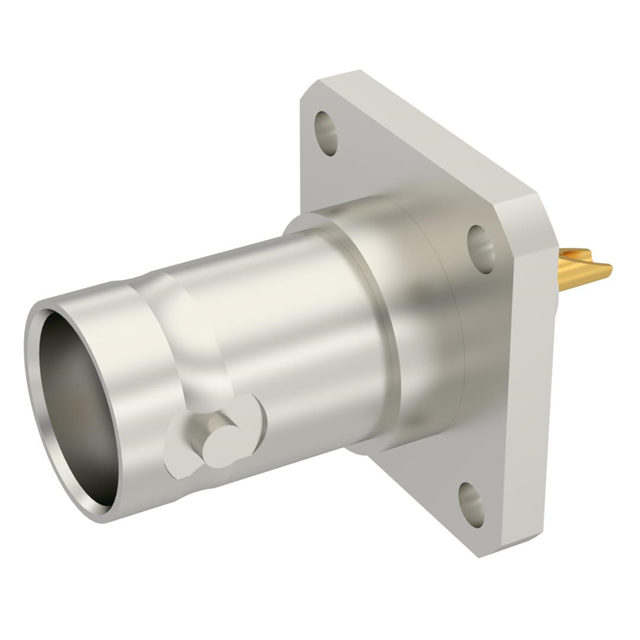

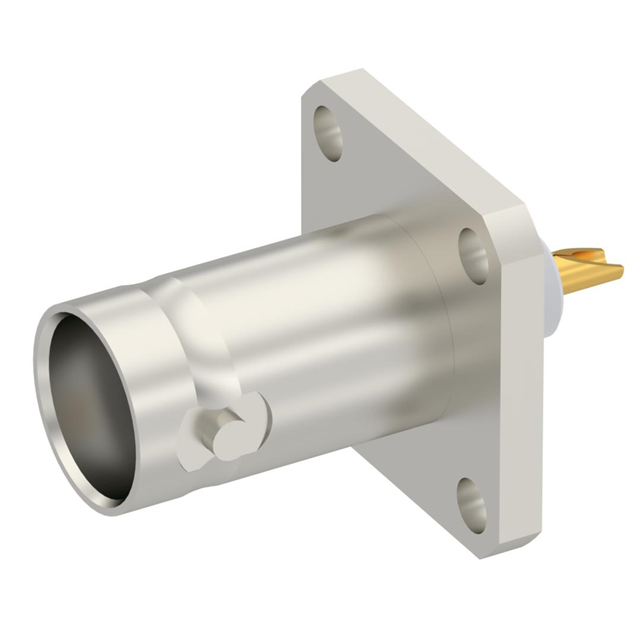

BNC / SQUARE FLANGE JACK RECEPTA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Mating Cycles | Body Finish | Dielectric Material | Voltage Rating | Impedance | Frequency - Max [Max] | Mounting Feature | Contact Termination | Number of Ports | Mounting Type | Connector Type | Features | Housing Color | Center Contact Material | Fastening Type | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Brass | 500 | Nickel | Polytetrafluoroethylene (PTFE) | 500 V | 50 Ohms | 4 GHz | Flange | Solder Cup | 1 | Panel Mount | Female Socket Jack | Extended Insulation | Silver | Beryllium Copper | Bayonet Lock | BNC | Solder |
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Brass | 500 | Nickel | Polytetrafluoroethylene (PTFE) | 500 V | 50 Ohms | 4 GHz | Flange | Solder Cup | 1 | Panel Mount | Female Socket Jack | Extended Insulation | Silver | Beryllium Copper | Bayonet Lock | BNC | Solder |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Brass | 500 | Nickel | Polytetrafluoroethylene (PTFE) | 500 V | 50 Ohms | 4 GHz | Flange | Solder Cup | 1 | Panel Mount | Female Socket Jack | Extended Insulation | Silver | Beryllium Copper | Bayonet Lock | BNC | Solder |
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Brass | 500 | Nickel | Polytetrafluoroethylene (PTFE) | 500 V | 50 Ohms | 4 GHz | Flange | Solder Cup | 1 | Panel Mount | Female Socket Jack | Extended Insulation | Silver | Beryllium Copper | Bayonet Lock | BNC | Solder |
