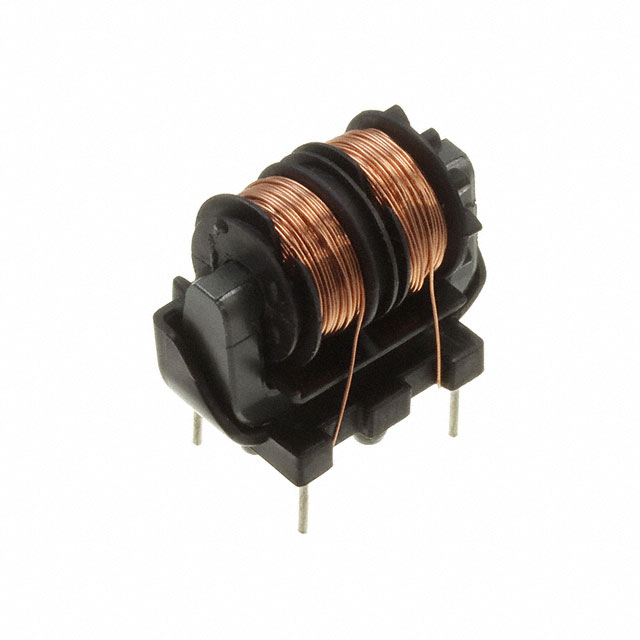

SSR10V Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250VAC 9.7MH 1.3A 11.5MM DCR=270MOHMS

Part	Inductance @ Frequency	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Voltage Rating - AC	Number of Lines	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)
KEMET SSR10V-13097	9.7 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C	1.3 A	250 V	2	270 mOhm	21 mm	0.827 in
KEMET SSR10V-06475	10 kHz 47.5 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C	600 mA	250 V	2	1.3 Ohm	21 mm	0.827 in
KEMET SSR10V-05595	59.5 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C	500 mA	250 V	2	1.7 Ohm	21 mm	0.827 in
KEMET SSR10V-10170	10 kHz 17 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C	1 A	250 V	2	480 mOhm	21 mm	0.827 in
KEMET SSR10V-07330	33 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C	700 mA	250 V	2	900 mOhm	21 mm	0.827 in
KEMET SSR10V-17058	5.8 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C		250 V	2		21 mm	0.827 in	180 mOhm
KEMET SSR10V-22034	3.4 mH	Through Hole	23.5 mm	13 mm	0.512 "	0.925 "	Vertical 4 PC Pin	120 °C	-25 °C	2.2 A	250 V	2		21 mm	0.827 in	110 mOhm
