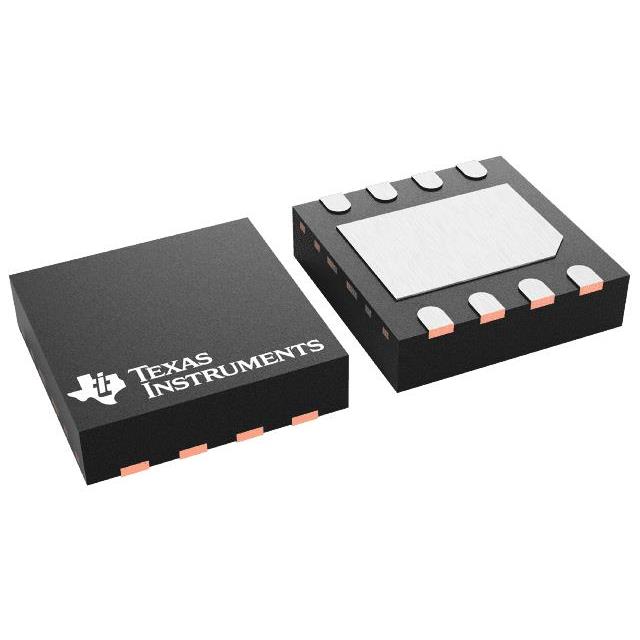

LP5812 Series

4 x 3 matrix RGB LED driver with I2C and auto animation control

Catalog

4 x 3 matrix RGB LED driver with I2C and auto animation control

Part	Applications	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Type	Voltage - Supply (Max)	Topology	Mounting Type	Voltage - Supply (Min) [Min]	Frequency	Supplier Device Package	Dimming
Texas Instruments LP5812AYBHR	General Purpose	51 mA	85 °C	-40 °C	4	9-BGA DSBGA	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	9-DSBGA (1.43x1.43)	Analog I2C PWM
Texas Instruments LP5812CYBHR	General Purpose	51 mA	85 °C	-40 °C	4	9-BGA DSBGA	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	9-DSBGA (1.43x1.43)	Analog I2C PWM
Texas Instruments LP5812CDSDR	General Purpose	51 mA	85 °C	-40 °C	4	8-WDFN Exposed Pad	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	8-WSON (3x3)	Analog I2C PWM
Texas Instruments LP5812BDSDR	General Purpose	51 mA	85 °C	-40 °C	4	8-WDFN Exposed Pad	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	8-WSON (3x3)	Analog I2C PWM
Texas Instruments LP5812DYBHR	General Purpose	51 mA	85 °C	-40 °C	4	9-BGA DSBGA	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	9-DSBGA (1.43x1.43)	Analog I2C PWM
Texas Instruments LP5812BYBHR	General Purpose	51 mA	85 °C	-40 °C	4	9-BGA DSBGA	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	9-DSBGA (1.43x1.43)	Analog I2C PWM
Texas Instruments LP5812ADSDR	General Purpose	51 mA	85 °C	-40 °C	4	8-WDFN Exposed Pad	Linear	5.5 V	Constant Current	Surface Mount	500 mV	1 MHz 500 kHz	8-WSON (3x3)	Analog I2C PWM

Catalog

4 x 3 matrix RGB LED driver with I2C and auto animation control

Key Features

• Operating voltage range:VCC range: 2.7V to 5.5VLogic pins compatible with 1.8V, 3.3V, and 5VTime-cross-multiplexing (TCM) topology:Drives up to 12 LEDs or 4 RGB LEDs¼, ⅓, ½, 1 multiplexing ratioSupports direct, TCM, and mix-drive modes4 constant current sinks with high precision:0.1mA to 51mA per current sinkDevice-to-device error: max ±5%Channel-to-channel error: max ±5%Ultra-low headroom voltage: 110mV (typ.) at 25.5mA; 210mV (typ.) at 51mAPWM phase shift configurable for each LEDUltra-low power consumption:Standby: ISTB = 26µA (typical) when CHIP_EN = 0 (data retained)Active: INOR = 0.4mA (typical) when LED current = 25.5mAAnalog dimming (current gain control)Global 1-bit Maximum Current (MC): 25.5mA or 51mAIndividual 8-bit Dot Current (DC) settingPWM dimming up to audible-noise-free 24kHzIndividual 8-bit PWM dimming resolutionLinear or exponential dimming curvesAutonomous animation engine controlIndividual LED dot open/short detectionIntegrated de-ghosting function1MHz (max.) I2C interface–40°C to 85°C operating temperature rangeOperating voltage range:VCC range: 2.7V to 5.5VLogic pins compatible with 1.8V, 3.3V, and 5VTime-cross-multiplexing (TCM) topology:Drives up to 12 LEDs or 4 RGB LEDs¼, ⅓, ½, 1 multiplexing ratioSupports direct, TCM, and mix-drive modes4 constant current sinks with high precision:0.1mA to 51mA per current sinkDevice-to-device error: max ±5%Channel-to-channel error: max ±5%Ultra-low headroom voltage: 110mV (typ.) at 25.5mA; 210mV (typ.) at 51mAPWM phase shift configurable for each LEDUltra-low power consumption:Standby: ISTB = 26µA (typical) when CHIP_EN = 0 (data retained)Active: INOR = 0.4mA (typical) when LED current = 25.5mAAnalog dimming (current gain control)Global 1-bit Maximum Current (MC): 25.5mA or 51mAIndividual 8-bit Dot Current (DC) settingPWM dimming up to audible-noise-free 24kHzIndividual 8-bit PWM dimming resolutionLinear or exponential dimming curvesAutonomous animation engine controlIndividual LED dot open/short detectionIntegrated de-ghosting function1MHz (max.) I2C interface–40°C to 85°C operating temperature range

Description

The LP5812 is a 4 × 3 matrix RGB LED driver with autonomous animation engine control. The device has ultra-low normal operation current with 0.4mA (typical) when illuminate LEDs. The time-cross-multiplexing (TCM) structure is adopted, which uses 4 output pins to control 12 LED dots individually. Both high-side scan switch and low-side current sink are contained in one output. The total solution size are minimized for space limited system. The autonomous animation engine can significantly reduce the real-time loading of controller. Each LED can be configured through the related registers to realize vivid and fancy lighting effects. The device can generate 6MHz clock signal and use it for synchronizing the lighting effects among multiple devices. The LP5812 is a 4 × 3 matrix RGB LED driver with autonomous animation engine control. The device has ultra-low normal operation current with 0.4mA (typical) when illuminate LEDs. The time-cross-multiplexing (TCM) structure is adopted, which uses 4 output pins to control 12 LED dots individually. Both high-side scan switch and low-side current sink are contained in one output. The total solution size are minimized for space limited system. The autonomous animation engine can significantly reduce the real-time loading of controller. Each LED can be configured through the related registers to realize vivid and fancy lighting effects. The device can generate 6MHz clock signal and use it for synchronizing the lighting effects among multiple devices.
