ZFA Series

Catalog

SWITCH PUSHBUTTON

Part	Actuator Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Switch Function	Voltage Rating - AC	Actuator Marking	Type	Panel Cutout Dimensions [diameter]	Circuit	Current Rating (Amps)	Termination Style	Mounting Type	Mechanical Life	Electrical Life
LITTELFUSE ZFAFA200GYGN2UEE

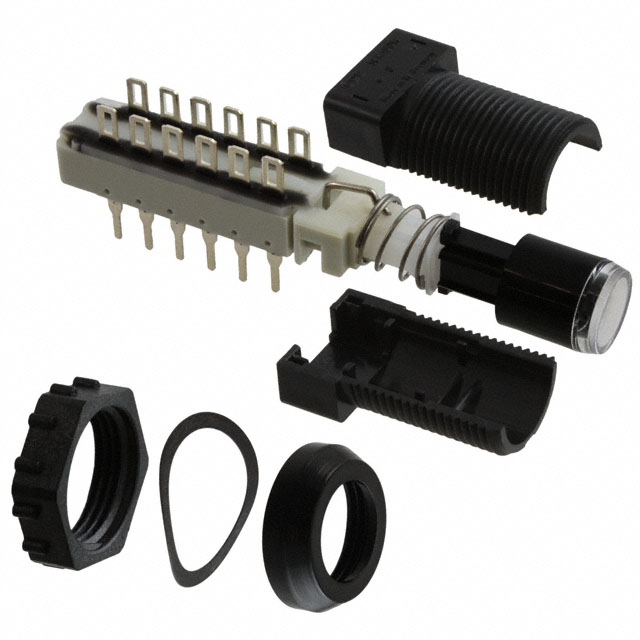

LITTELFUSE ZFA FA200 BK GN 4U EE	Button Round	30 V	70 °C	-40 C	Green	On-On	125 V	No Marking	Standard	14 mm	4PDT	500 mA	PC Pin Solder Lug	Panel Mount Rear Right Angle	100000 Cycles	100000 Cycles

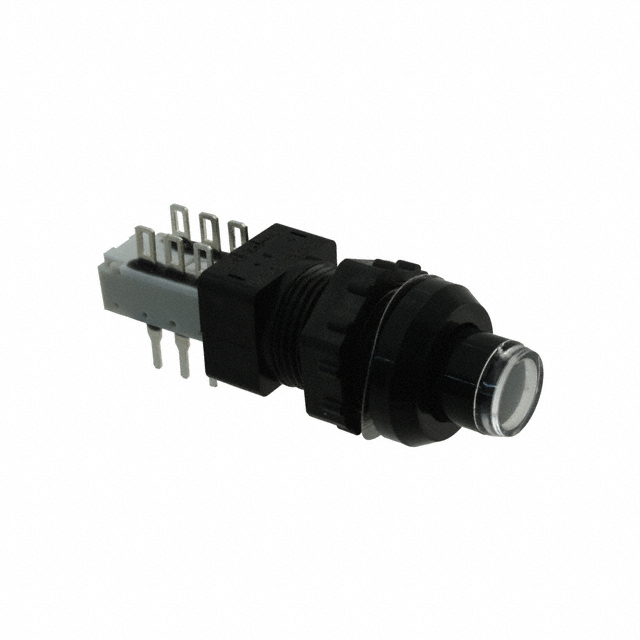

LITTELFUSE ZFA FA200 BK OG 2U EE	Button Round	30 V	70 °C	-40 C	Orange	On-On	125 V	No Marking	Standard	14 mm	DPDT	500 mA	PC Pin Solder Lug	Panel Mount Rear Right Angle	100000 Cycles	100000 Cycles

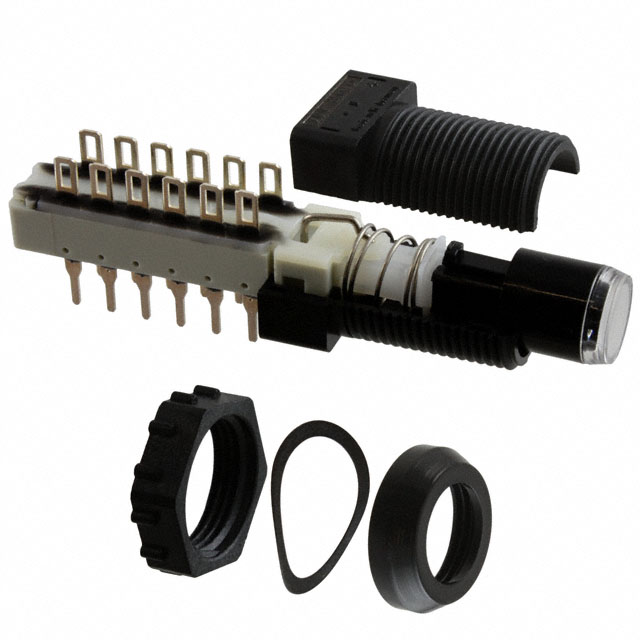

LITTELFUSE ZFA FA200 BK OG 4U EE	Button Round	30 V	70 °C	-40 C	Orange	On-On	125 V	No Marking	Standard	14 mm	4PDT	500 mA	PC Pin Solder Lug	Panel Mount Rear Right Angle	100000 Cycles	100000 Cycles

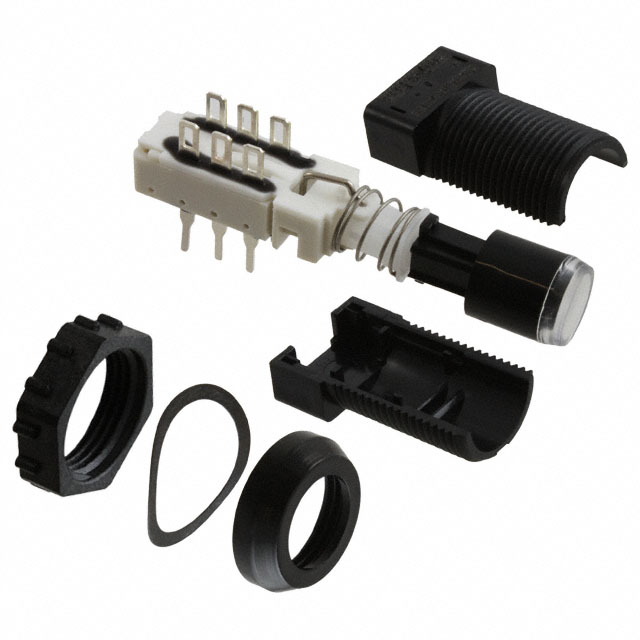

LITTELFUSE ZFAFA200BKGN2UEE	Button Round	30 V	70 °C	-40 C	Green	On-On	125 V	No Marking	Standard	14 mm	DPDT	500 mA	PC Pin Solder Lug	Panel Mount Rear Right Angle	100000 Cycles	100000 Cycles
