108dB SNR 8-Channel Audio DAC
Key Features

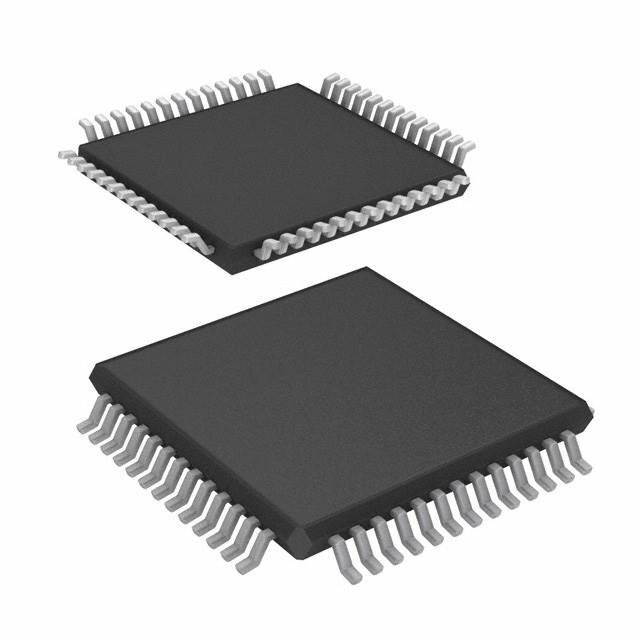

• Supports DSD and PCM FormatsSupports TDMCAAccepts 16-, 18-, 20- and 24-Bit Audio Data for PCM FormatAnalog Performance (VCC= 5 V):Dynamic Range: 108 dB, TypicalSNR: 108 dB, TypicalTHD+N: 0.0012%, TypicalFull-Scale Output: 4 Vpp, TypicalIncludes 8× Oversampling Digital Filter for PCM Format:Stopband Attenuation: –60 dBPassband Ripple: ±0.02 dBIncludes Digital DSD FILTER for DSD Format:Passband: 50 kHz, 70 kHz, 60 kHz at –3 dBSampling Frequency:PCM Mode: 10 kHz to 200 kHzDSD Mode: 64 × 44.1 kHzSystem Clock:128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fSData Formats:Standard, I2S, and Left-Justified for PCM Direct Stream DigitalUser-Programmable Mode Controls:Digital AttenuationDigital De-EmphasisDigital Filter Rolloff: Sharp or Slow Soft MuteThree Zero FlagsDual Supply Operation:5-V Analog, 3.3-V DigitalPackage: 52-Pin TQFPAPPLICATIONSUniversal A/V PlayersSACD PlayersCar Audio SystemsOther Applications Requiring 24-Bit AudioSupports DSD and PCM FormatsSupports TDMCAAccepts 16-, 18-, 20- and 24-Bit Audio Data for PCM FormatAnalog Performance (VCC= 5 V):Dynamic Range: 108 dB, TypicalSNR: 108 dB, TypicalTHD+N: 0.0012%, TypicalFull-Scale Output: 4 Vpp, TypicalIncludes 8× Oversampling Digital Filter for PCM Format:Stopband Attenuation: –60 dBPassband Ripple: ±0.02 dBIncludes Digital DSD FILTER for DSD Format:Passband: 50 kHz, 70 kHz, 60 kHz at –3 dBSampling Frequency:PCM Mode: 10 kHz to 200 kHzDSD Mode: 64 × 44.1 kHzSystem Clock:128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fSData Formats:Standard, I2S, and Left-Justified for PCM Direct Stream DigitalUser-Programmable Mode Controls:Digital AttenuationDigital De-EmphasisDigital Filter Rolloff: Sharp or Slow Soft MuteThree Zero FlagsDual Supply Operation:5-V Analog, 3.3-V DigitalPackage: 52-Pin TQFPAPPLICATIONSUniversal A/V PlayersSACD PlayersCar Audio SystemsOther Applications Requiring 24-Bit Audio
Description
AI
The DSD1608 is a CMOS, monolithic, 8-channel digital-to-analog converter which supports both PCM audio data format and direct stream digital (DSD) audio data format. The device includes an 8× digital interpolation filter and a digital DSD filter with three selectable frequency-response curves, followed by Texas Instruments’ enhanced multilevel delta-sigma modulator, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. Sampling rates up to 192 kHz for the PCM mode and 64 × 44.1 kHz for the DSD mode are supported. A full set of user-programmable functions is accessible through a 4-wire serial control port, which supports register write and read functions. The DSD1608 supports the time-division-multiplexed command and audio data (TDMCA) format. The DSD1608 is available in a 52-pin TQFP package.
The DSD1608 is a CMOS, monolithic, 8-channel digital-to-analog converter which supports both PCM audio data format and direct stream digital (DSD) audio data format. The device includes an 8× digital interpolation filter and a digital DSD filter with three selectable frequency-response curves, followed by Texas Instruments’ enhanced multilevel delta-sigma modulator, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. Sampling rates up to 192 kHz for the PCM mode and 64 × 44.1 kHz for the DSD mode are supported. A full set of user-programmable functions is accessible through a 4-wire serial control port, which supports register write and read functions. The DSD1608 supports the time-division-multiplexed command and audio data (TDMCA) format. The DSD1608 is available in a 52-pin TQFP package.
