19628062 Series
Manufacturer: HARTING
Beta
⌘K

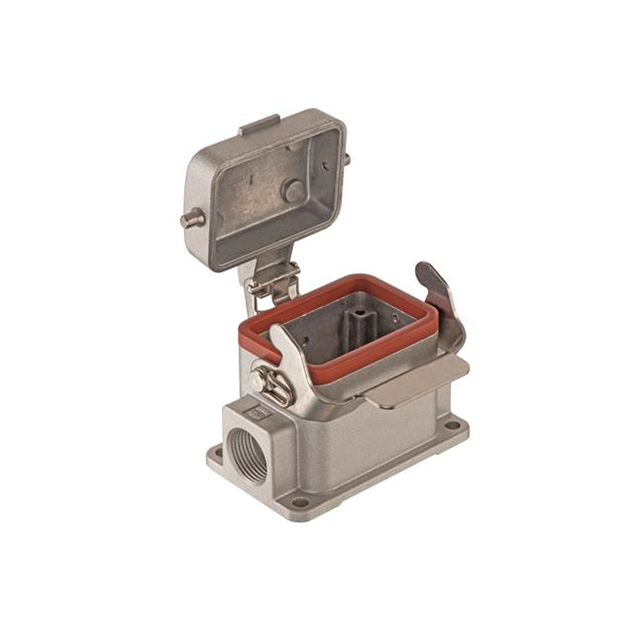

6B SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 2XM20 W/ COVER - HIGH TEMP VERSION
| Part | Housing Material | Ingress Protection | Style | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Lock Location | Thread Size | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Features | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | Side Entry Dual | -40 C | 200 °C | Base - Box Mount | Locking Clip (1) on Base Bottom | M20 | 51.5 mm | 2.028 in | 82 mm | 2.047 in | 52 mm | 3.228 in | Feed Through | 6B |
