MAX9716 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

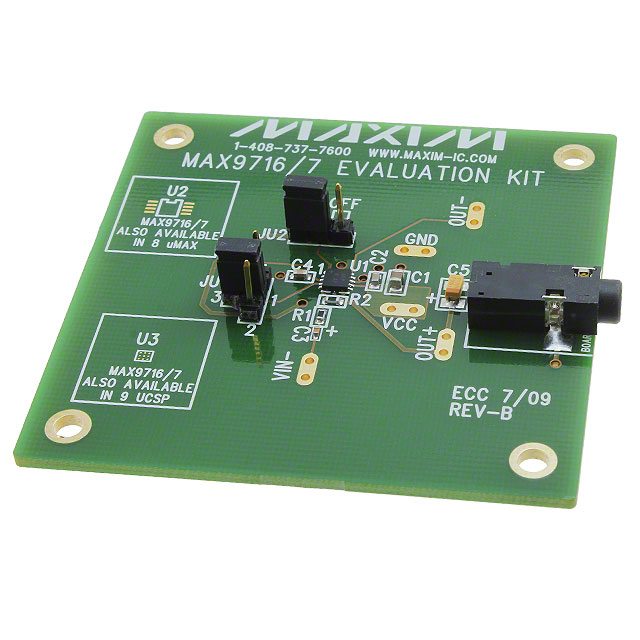

EVAL BOARD FOR MAX9716
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Supplied Contents | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load [custom] | Amplifier Type | Board Type | Utilized IC / Part | Type | Package / Case | Package / Case [custom] | Supplier Device Package | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 2.7 V | 5.5 V | 1-Channel (Mono) | Board(s) | 4 Ohm | 1 | 1.4 W | Class AB | Fully Populated | MAX9716 MAX9717 | ||||||||
 Analog Devices Inc./Maxim Integrated | 2.7 V | 5.5 V | 1-Channel (Mono) | 4 Ohm | 1 | 1.4 W | Class AB | 8-MSOP 8-TSSOP Exposed Pad | 0.118 in 3 mm | 8-uMAX-EP 8-uSOP-EP | Depop Differential Inputs Shutdown Thermal Protection | Surface Mount | 85 °C | -40 °C | ||||
 Analog Devices Inc./Maxim Integrated | 2.7 V | 5.5 V | 1-Channel (Mono) | 4 Ohm | 1 | 1.4 W | Class AB | 8-WDFN Exposed Pad | 8-TDFN (3x3) | Depop Differential Inputs Shutdown Thermal Protection | Surface Mount | 85 °C | -40 °C |
