UEE-3.3 Series

Catalog

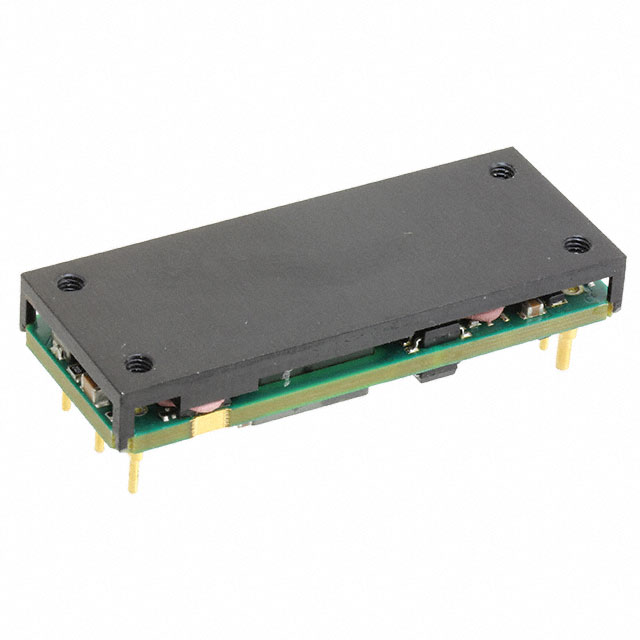

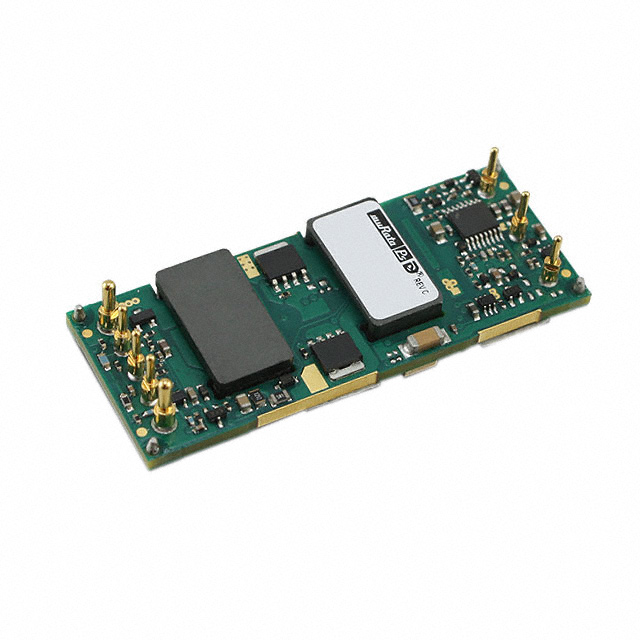

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, EIGHTH BRICK, 2:1, 82.5 W, 1 OUTPUT, 3.3 V

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Applications	Voltage - Input (Min) [Min]	Control Features	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Features	Voltage - Isolation	Mounting Type	Power (Watts)	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]
Murata Electronics UEE-3.3/25-D48N-C	75 V	25 A	90 %	ITE (Commercial)	36 V	Active Low Enable	1	0.4 "	0.9 in	22.9 mm	2.3 in	58.4 mm	10.2 mm	8-DIP Module 1/8 Brick	Remote On/Off	2250 VDC	Through Hole	82 W	Isolated Module	3.3 V	85 °C	-40 C
Murata Electronics UEE-3.3/45-D48N-C	75 V	45.5 A	92 %	ITE (Commercial)	36 V	Active Low Enable	1	0.42 "	0.9 in	22.9 mm	2.3 in	58.4 mm	10.7 mm	8-DIP Module 1/8 Brick	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Through Hole	150 W	Isolated Module	3.3 V	85 °C	-40 C
Murata Electronics UEE-3.3/45-D48PM-C	75 V	45.5 A	92 %	ITE (Commercial)	36 V	Active High Enable	1	0.42 "	0.9 in	22.9 mm	2.3 in	58.4 mm	10.7 mm	8-SMD Module 1/8 Brick	OCP OTP OVP Remote On/Off SCP UVLO	2250 VDC	Surface Mount	150 W	Isolated Module	3.3 V	85 °C	-40 C
Murata Electronics UEE-3.3/30-D48NB-C	75 V	30 A	90 %	ITE (Commercial)	36 V	Active Low Enable	1	0.5 in	0.9 in		2.3 in	58.4 mm		8-DIP Module 1/8 Brick	OCP OTP Remote On/Off SCP UVLO	2250 VDC	Through Hole	99 W	Isolated Module	3.3 V	85 °C	-40 C	22.9 mm	12.7 mm
Murata Electronics UEE-3.3/45-D48NB-C	75 V	45.5 A	92 %	ITE (Commercial)	36 V	Active Low Enable	1	0.5 in	0.9 in		2.3 in	58.4 mm		8-DIP Module 1/8 Brick	OCP OTP Remote On/Off SCP UVLO	2250 VDC	Through Hole	150 W	Isolated Module	3.3 V	85 °C	-40 C	22.9 mm	12.7 mm
Murata Electronics UEE-3.3/25-D48NM-C	75 V	25 A	90 %	ITE (Commercial)	36 V	Active Low Enable	1	0.4 "	0.9 in	22.9 mm	2.3 in	58.4 mm	10.2 mm	8-SMD Module 1/8 Brick	OCP OVP Remote On/Off SCP UVLO	2250 VDC	Surface Mount	83 W	Isolated Module	3.3 V	85 °C	-40 C
