68683 Series

Catalog

CONN RCPT 38POS 0.1 GOLD PCB

...

Part	Voltage Rating	Contact Shape	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Material	Termination	Connector Type	Applications	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Insulation Height [z]	Insulation Height [z]
Amphenol ICC (FCI) 68683-619LF	1000 VDC	Square	38	125 °C	-65 ░C	All	30 Áin	0.76 Ám	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-450LF	1000 VDC	Square	100	125 °C	-65 ░C	All	100 çin	2.54 çm	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in		Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-237LF	1000 VDC	Square	74	125 °C	-65 ░C	All	15 µin	0.38 µm	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-340	1000 VDC	Square	80	125 °C	-65 ░C	All	30 Áin	0.76 Ám	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-310	1000 VDC	Square	20	125 °C	-65 ░C	All	30 Áin	0.76 Ám	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-617LF	1000 VDC	Square	34	125 °C	-65 ░C	All	30 Áin	0.76 Ám	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in

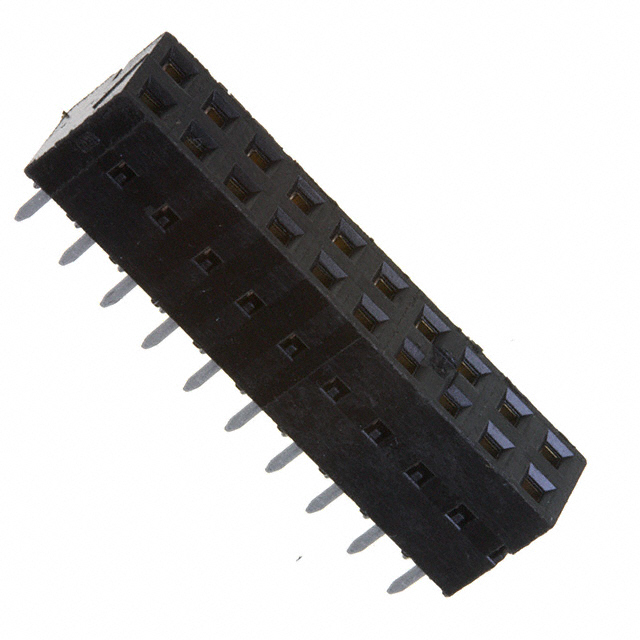

Amphenol ICC (FCI) 68683-310LF	1000 VDC	Square	20	125 °C	-65 ░C	All	30 Áin	0.76 Ám	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-239LF	1000 VDC	Square	78	125 °C	-65 ░C	All	15 µin	0.38 µm	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-445LF	1000 VDC	Square	90	125 °C	-65 ░C	All	100 çin	2.54 çm	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in		Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
Amphenol ICC (FCI) 68683-230	1000 VDC	Square	60	125 °C	-65 ░C	All	15 µin	0.38 µm	Black	UL94 V-0	Through Hole	2.54 µm	100 µin	2	Female Socket	2.92 mm	0.115 in	Gold	Phosphor Bronze	Solder	Receptacle	Automotive General Purpose Industrial Telecommunications	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS) Glass Filled	0.1 in	2.54 mm	Tin	Push-Pull	7 mm	0.276 in
