1986720 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 5POS STR 3.81MM

Part	Pitch [x]	Pitch [x]	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Mating Finish	Insulation Height	Insulation Height	Housing Material	Positions Per Level	Contact Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Current - UL	Mounting Type	Material Flammability Rating	Voltage - UL	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

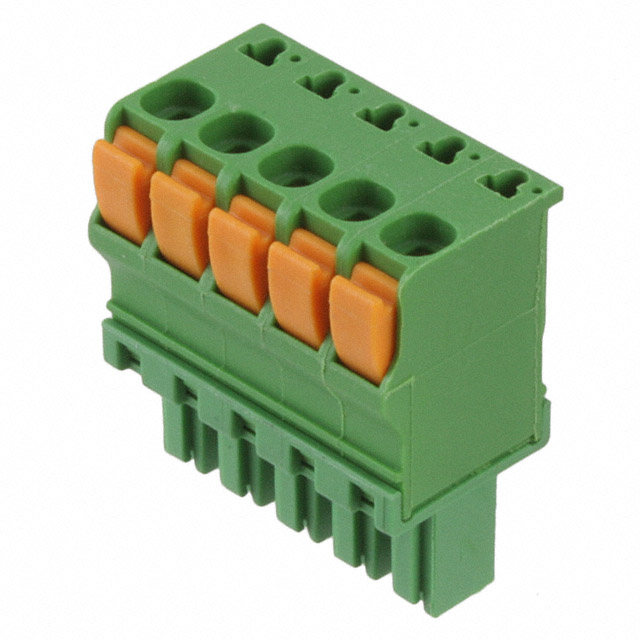

TE Connectivity Raychem Cable Protection 1986720-5	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	5	Copper Alloy	0.05 mm²	2 mm²	Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V

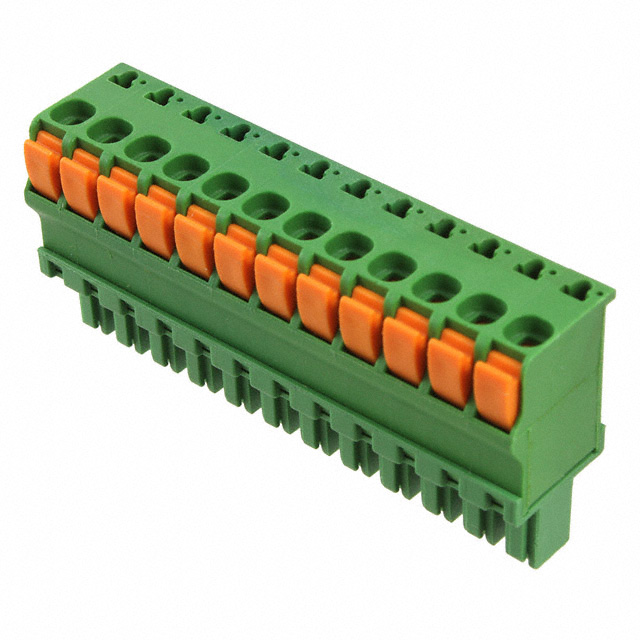

TE Connectivity Raychem Cable Protection 1-1986720-2	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	12	Copper Alloy	0.05 mm²	2 mm²	Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V	12
TE Connectivity Raychem Cable Protection 2-1986720-3	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	23	Copper Alloy	0.05 mm²	2 mm²	Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V	23

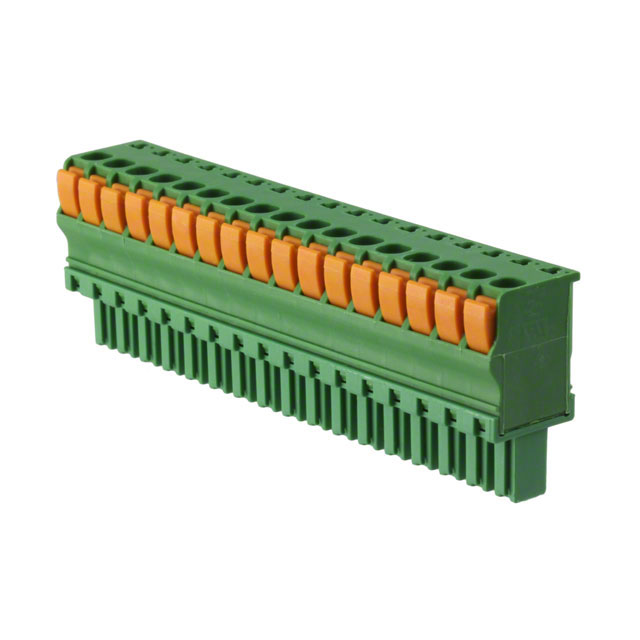

TE Connectivity Raychem Cable Protection 1-1986720-7	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	17	Copper Alloy	0.05 mm²	2 mm²	Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V
TE Connectivity Raychem Cable Protection 2-1986720-0	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	20	Copper Alloy	0.05 mm²	2 mm²	Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V	20
TE Connectivity Raychem Cable Protection 1-1986720-4	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	14	Copper Alloy	0.05 mm²	2 mm²	Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V	14

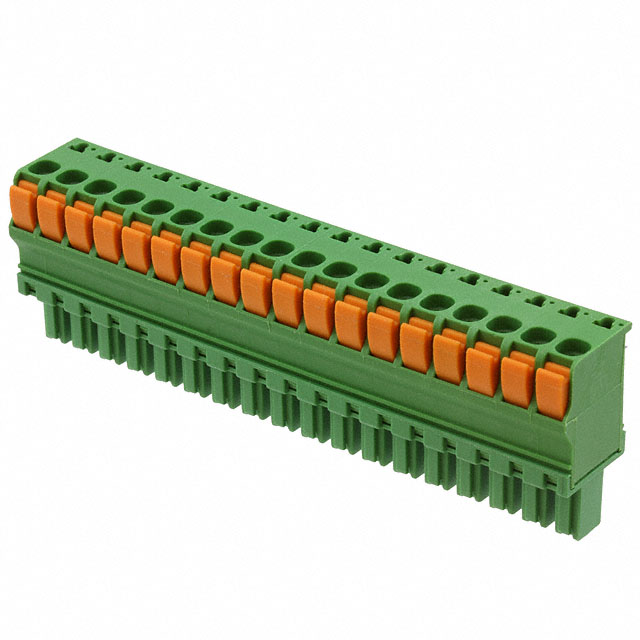

TE Connectivity Raychem Cable Protection 1-1986720-8	0.15 in	3.81 mm	Green	14 AWG	30 AWG	1	Push-In Spring Screwless - Leg Spring	-40 °C	110 °C	Plug Female Sockets	Tin	11.66 mm	0.459 in	Polyamide (PA) Nylon	18	Copper Alloy			Side Stacking	9 A	Free Hanging (In-Line)	UL94 V-0	300 V	18	2 mm˛	0.05 mm˛
