2246C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

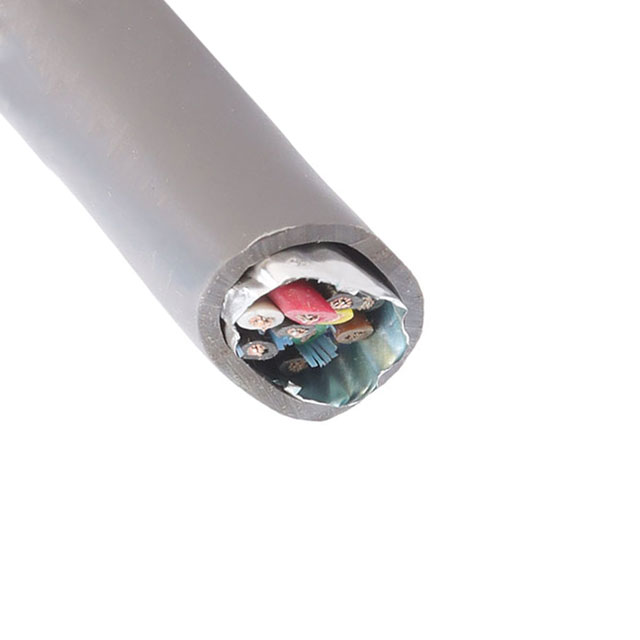

CABLE 6CON 18AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Wire Gauge | Features | Usage | Conductor Insulation | Voltage | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Cable Type | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 6 12 | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 1.143 mm | 0.045 in | 18 AWG | Drain Wire | Communication Control | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | Foil | 12.32 mm | 0.485 in | Slate | Multi-Conductor | 100 ft | 30.5 m | 16 | 30 AWG | ||
ALPHA WIRE | 100 % | Aluminum | 6 12 | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 1.143 mm | 0.045 in | 18 AWG | Drain Wire | Communication Control | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | Foil | 12.32 mm | 0.485 in | Slate | Multi-Conductor | 16 | 30 AWG | 304.8 m | 1000 ft |
