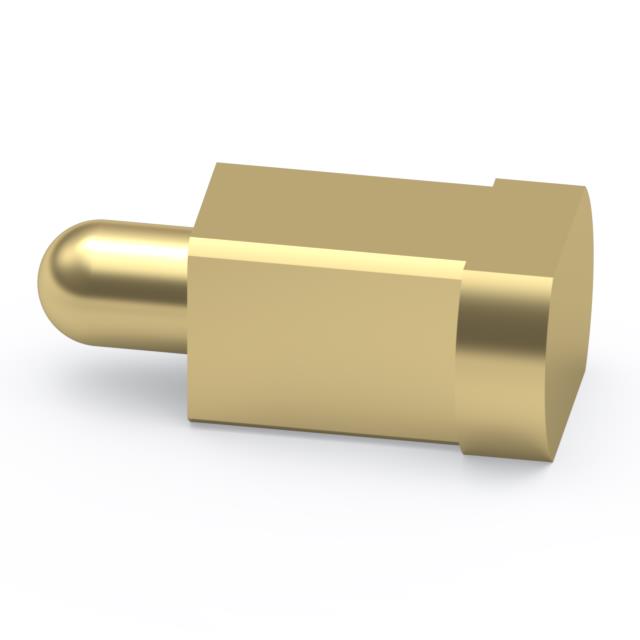

0986-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
HORIZONTAL SURFACE MOUNT (HSMT)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Operating Force - Mid Compression | Contact Type | Minimum Working Height | Minimum Working Height | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Initial | Contact Finish | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | 60 gf | Sleeve & Plunger (Pogo Pins) | 3.1 mm | 0.122 in | 5.2 A | 20 µin | 0.51 µm | Surface Mount | Brass Alloy | 0.042 in | 1.07 mm | 0.15 in | 3.8 mm | 0.177 in | 4.5 mm | 10 gf | Gold | 0.093 in | 2.36 mm |
