P232 Series

Potentiometers

Manufacturer: TT Electronics/BI

Catalog

Potentiometers

Catalog

Potentiometers

Part	Bushing Thread	Features	Built in Switch	Power (Watts)	Power (Watts)	Actuator Type	Number of Gangs	Size - Body [diameter]	Size - Body [diameter]	Taper	Rotation	Mounting Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Length [x]	Actuator Length [x]	Resistive Material	Termination Style	Adjustment Type	Number of Turns	Tolerance	Resistance (Ohms)	Power (Watts)	Resistance (Ohms)
TT Electronics/BI P232-DEC20BR10K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %	10k
TT Electronics/BI P232-DFC35AR100K	M9 x 0.75	Sealed	None	300 mW		Flatted	1	23 mm	0.906 "	Logarithmic	300 ░	Panel Mount	6.35 mm	0.25 in	1.378 in	35 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %	100k	3/10W
TT Electronics/BI P232-SEC20BR5K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %			5 kOhms
TT Electronics/BI P232-SFC25BR10K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Flatted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.984 in	25 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %	10k
TT Electronics/BI P232-SEA20BR100K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %	100k
TT Electronics/BI P232-SEC35BR5K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	1.378 in	35 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %			5 kOhms
TT Electronics/BI P232-DEC22BR100K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.866 in	22 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %	100k
TT Electronics/BI P232-SEC20BR1MEG	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %			1 MΩ
TT Electronics/BI P232-SEA20BR10K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %	10k

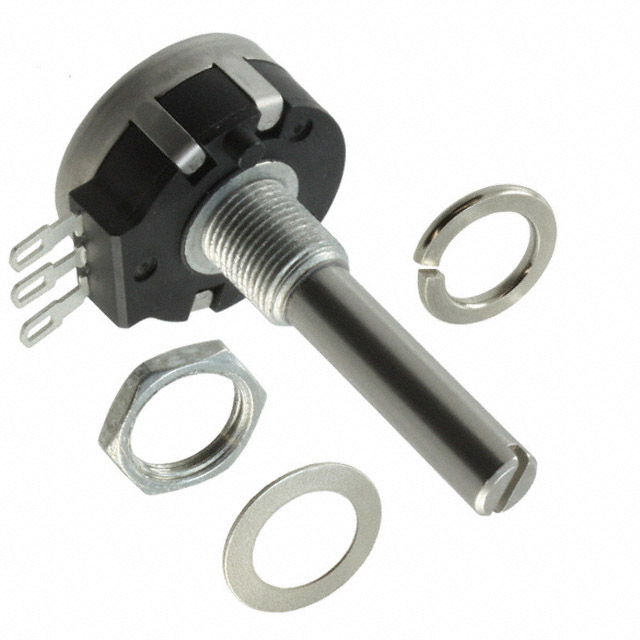

TT Electronics/BI P232-DEC35BR5K	M9 x 0.75	Sealed	None	0.5 W	0.5 W	Slotted	1	23 mm	0.906 "	Linear	300 ░	Panel Mount	6.35 mm	0.25 in	1.378 in	35 mm	Conductive Plastic	Solder Lug	User Defined	1	10 %			5 kOhms
