NCP1011 Series

High Voltage Switching Regulator for Offline SMPS

Catalog

High Voltage Switching Regulator for Offline SMPS

Part	Frequency - Switching	Supplier Device Package	Duty Cycle	Voltage - Breakdown	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Power (Watts)	Output Isolation	Topology	Package / Case	Fault Protection	Package / Case	Package / Case

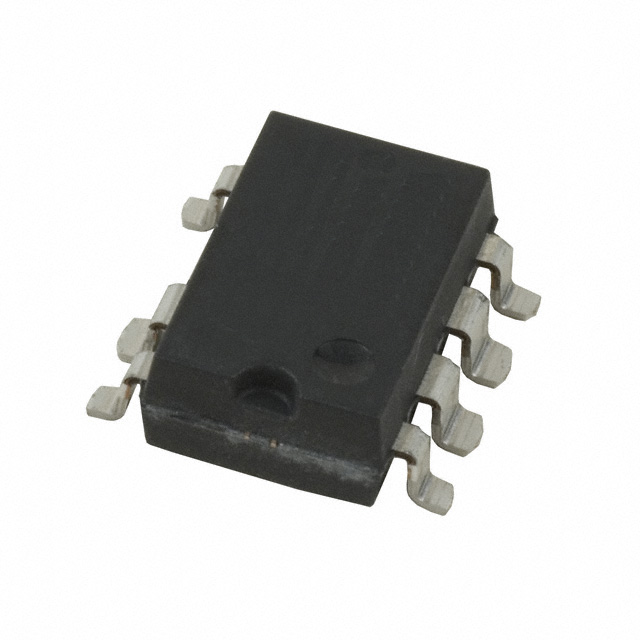

ON Semiconductor NCP1011APL130R2G	130 kHz	7-PDIP Gullwing	67 %	700 V	150 °C	-40 °C	Surface Mount	10 V	8.5 V	19 W	Isolated	Flyback	8-SMD (7 Leads) Gull Wing	Over Load Over Temperature Over Voltage
ON Semiconductor NCP1011AP100G	100 kHz	7-PDIP	67 %	700 V	150 °C	-40 °C	Through Hole	10 V	8.5 V	19 W	Isolated	Flyback	8-DIP	Over Load Over Temperature Over Voltage	7.62 mm	0.3 in 7 Leads
ON Semiconductor NCP1011ST130T3G	130 kHz	SOT-223 (TO-261)	67 %	700 V	150 °C	-40 °C	Surface Mount	10 V	8.5 V	19 W	Isolated	Flyback	TO-261-4 TO-261AA	Over Load Over Temperature Over Voltage
ON Semiconductor NCP1011APL065R2G	65 kHz	7-PDIP Gullwing	67 %	700 V	150 °C	-40 °C	Surface Mount	10 V	8.5 V	19 W	Isolated	Flyback	8-SMD (7 Leads) Gull Wing	Over Load Over Temperature Over Voltage
ON Semiconductor NCP1011ST100T3	100 kHz	SOT-223 (TO-261)	67 %	700 V	150 °C	-40 °C	Surface Mount	10 V	8.5 V	19 W	Isolated	Flyback	TO-261-4 TO-261AA	Over Load Over Temperature Over Voltage
ON Semiconductor NCP1011ST100T3G	100 kHz	SOT-223 (TO-261)	67 %	700 V	150 °C	-40 °C	Surface Mount	10 V	8.5 V	19 W	Isolated	Flyback	TO-261-4 TO-261AA	Over Load Over Temperature Over Voltage

Catalog

High Voltage Switching Regulator for Offline SMPS

Key Features

• Built-in 700V MOSFET with Typical RdsON of 11 or 22 Ohms

• Large Creepage Distance between High-Voltage Pins

• Current- Mode Fixed Frequency Operation: 65kHz - 100kHz - 130kHz

• Skip-Cycle Operation at Low Peak Currents Only: No Acoustic Noise!

• Dynamic Self-Supply, No Need of an Auxiliary Winding

• Internal 1ms Soft-Start

• Auto-Recovery Internal Output Short-Circuit Protection

• Latched Overvoltage Protection with Auxiliary Winding Operation

• Frequency Jittering for better EMI Signature

• Below 100 mW Standby Power if Auxiliary Winding is Used

• Internal Temperature Shutdown

• Direct Optocoupler Connection

• SPICE Models Available for Transient AC analysis

• Pb-Free Packages are Available

Description

The NCP101X series integrates a fixed-frequency current-mode controller and a 700 V voltage MOSFET. Housed in a PDIP7 package, the NCP101X offers everything needed to build a rugged and low-cost power supply, including soft-start, frequency jittering, short-circuit protection, skip-cycle, a maximum peak current setpoint and a Dynamic Self-Supply (no need for an auxiliary winding).Unlike other monolithic solutions, the NCP101X is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65-100-130 kHz). When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically enters the so-called skip cycle mode and provides excellent efficiency at light loads. Because this occurs at typically 1/4 of the maximum peak value, no acoustic noise takes place. As a result, standby power is reduced to the minimum without acoustic noise generation.
