ADS8509 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC ADC 16BIT SAR 28SSOP
| Part | Sampling Rate (Per Second) | Number of Bits | Ratio - S/H:ADC | Supplier Device Package | Voltage - Supply, Analog | Data Interface | Input Type | Number of Inputs | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Digital | Package / Case [custom] | Package / Case | Package / Case [custom] | Configuration | Reference Type | Architecture | Number of A/D Converters | Package / Case [y] | Package / Case [y] | Utilized IC / Part | Supplied Contents | Input Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 250 k | 16 | 1:1 | 28-SSOP | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 0.209 in | 28-SSOP | 5.3 mm | S/H-ADC | External Internal | SAR | 1 | |||||
Texas Instruments | 250 k | 16 | 1:1 | 28-SSOP | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 0.209 in | 28-SSOP | 5.3 mm | S/H-ADC | External Internal | SAR | 1 | |||||
 Texas Instruments | 250 k | 16 | 1:1 | 20-SOIC | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 20-SOIC | S/H-ADC | External Internal | SAR | 1 | 0.295 in | 7.5 mm | |||||
Texas Instruments | 250 k | 16 | 1:1 | 28-SSOP | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 0.209 in | 28-SSOP | 5.3 mm | S/H-ADC | External Internal | SAR | 1 | |||||
Texas Instruments | 250 k | 16 | 1:1 | 20-SOIC | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 20-SOIC | S/H-ADC | External Internal | SAR | 1 | 0.295 in | 7.5 mm | |||||
Texas Instruments | 250 k | 16 | 1:1 | 20-SOIC | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 20-SOIC | S/H-ADC | External Internal | SAR | 1 | 0.295 in | 7.5 mm | |||||

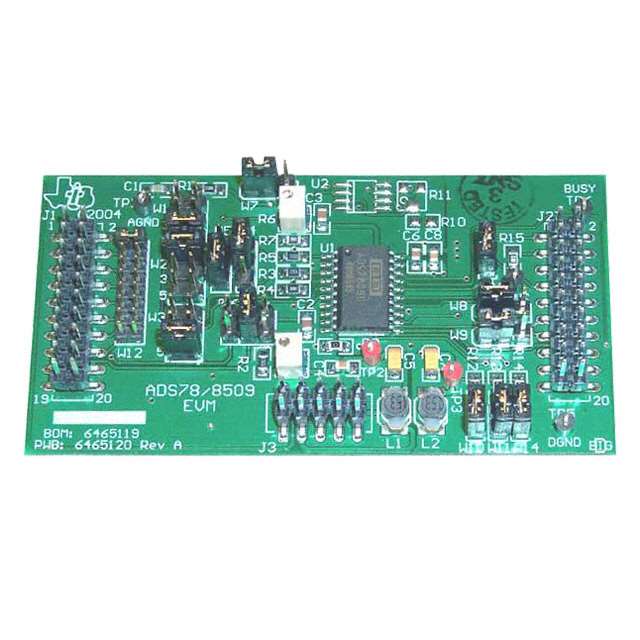

 Texas Instruments | 250 k | 16 | Serial | 1 | ADS8509 | Board(s) | 10 V | |||||||||||||||||
 Texas Instruments | 250 k | 16 | 1:1 | 28-SSOP | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 0.209 in | 28-SSOP | 5.3 mm | S/H-ADC | External Internal | SAR | 1 | |||||
Texas Instruments | 250 k | 16 | 1:1 | 28-SSOP | 5 V | SPI | Single Ended | 1 | Surface Mount | 85 °C | -40 °C | 5 V | 0.209 in | 28-SSOP | 5.3 mm | S/H-ADC | External Internal | SAR | 1 | |||||
Texas Instruments | 250 k | 16 | 1:1 | 28-SSOP | 5 V | SPI | Single Ended | 1 | Surface Mount | 347 °F | -40 °C | 5 V | 0.209 in | 28-SSOP | 5.3 mm | S/H-ADC | External Internal | SAR | 1 |
