1969447 Series

Catalog

CONN QC RCPT 14-18AWG 0.250

Part	Mounting Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Gender	Insulation	Terminal Type	Contact Finish	Tab Width	Tab Width	Color	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]

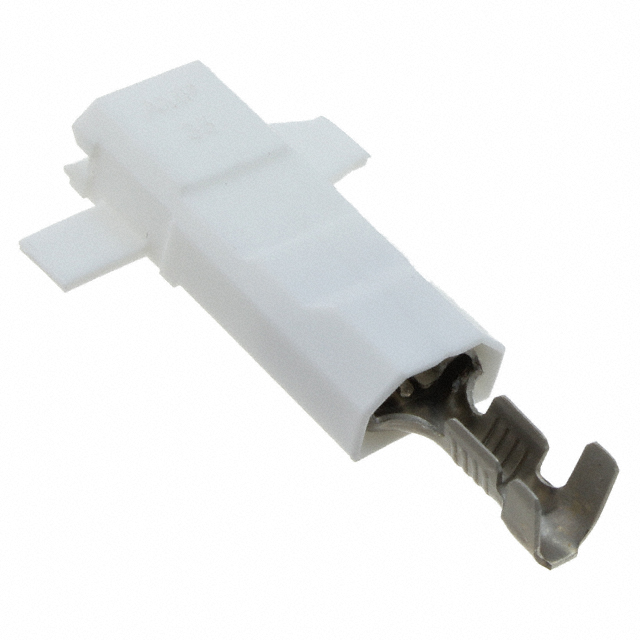

TE Connectivity Raychem Cable Protection 1969447-1	Free Hanging (In-Line)	Steel	0.945 in	24 mm	0.032 in	0.81 mm	Crimp	14 AWG	18 AWG	Female	Mating End Insulated	Standard	Nickel	6.35 mm	0.25 in	White	0.12 in	0.17 in	4.32 mm	3.05 mm
