EXP-0921 Series

Catalog

CONN RCPT MALE 2POS NICKEL SCREW

Part	Voltage Rating	Orientation	Shell Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Primary Material	Contact Material	Mounting Type	Ingress Protection	Current Rating (Amps)	Termination	Connector Type	Color	Shielding	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Applications	Features	Number of Positions
BULGIN LIMITED EXP-0921/02/P	600 VAC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	18 A	Screw	Receptacle Male Pins	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell UV Resistant	2
BULGIN LIMITED EXP-0921/04/S	600 VAC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	18 A	Screw	Receptacle Female Sockets	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell UV Resistant	4

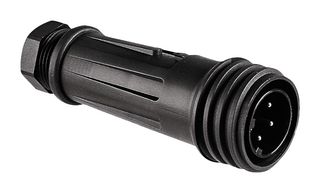

BULGIN LIMITED EXP-0921/07/P	430 VAC/DC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	16 A	Screw	Receptacle Male Pins	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell UV Resistant	7
BULGIN LIMITED EXP-0921/07/S	430 VAC/DC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	16 A	Screw	Receptacle Female Sockets	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell UV Resistant	7

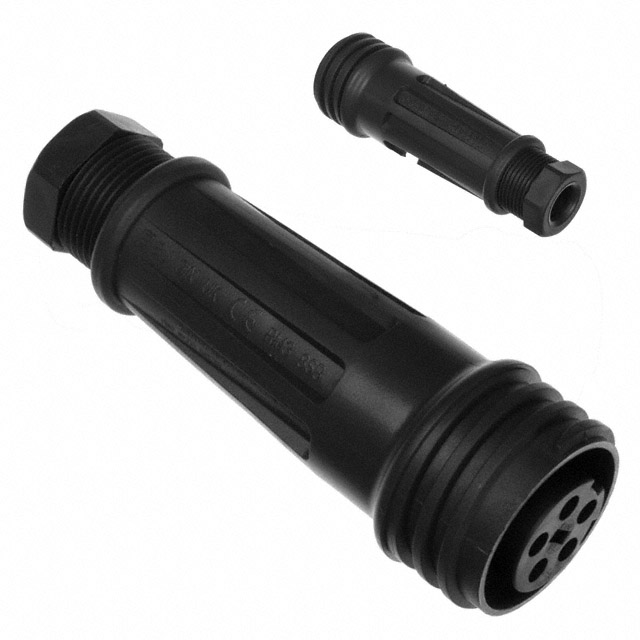

BULGIN LIMITED EXP-0921/05/S	600 VAC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	18 A	Screw	Receptacle Female Sockets	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell Trailing Neutral UV Resistant	5

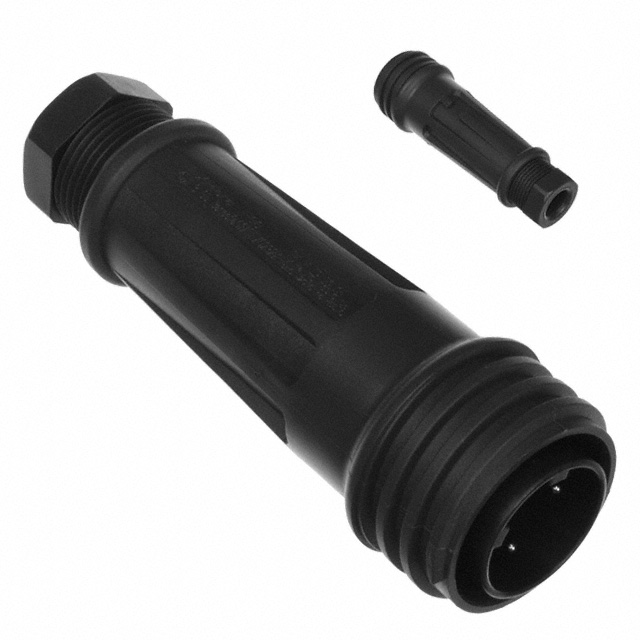

BULGIN LIMITED EXP-0921/03/P	600 VAC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	18 A	Screw	Receptacle Male Pins	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell UV Resistant	3

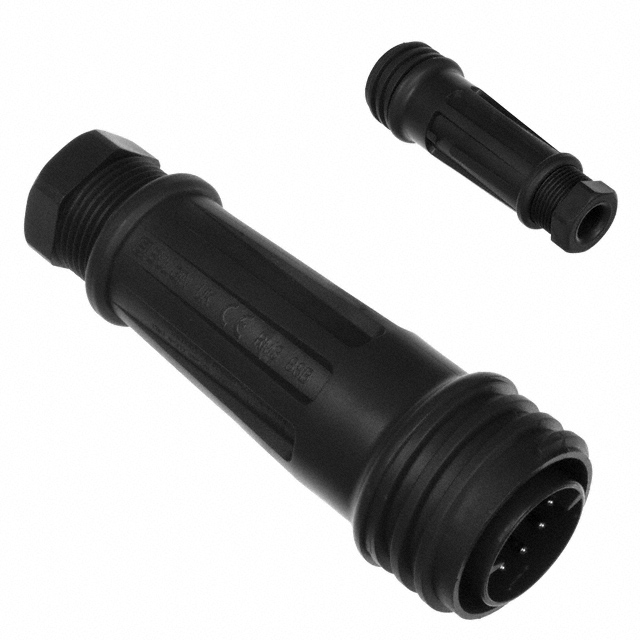

BULGIN LIMITED EXP-0921/10/P	250 VAC	Keyed	Polyester	UL94 V-0	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Plastic	Brass	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	10 A	Screw	Receptacle Male Pins	Black	Unshielded	Nickel	Polyester	Threaded	Industrial	Backshell UV Resistant	10
