9320 Series
Manufacturer: Belden Inc.
Beta
⌘K

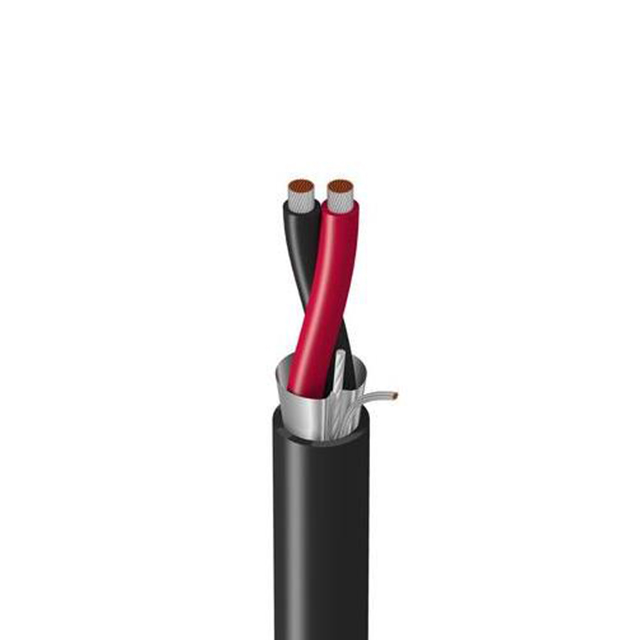

CABLE 2COND 20AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Ratings | Jacket (Insulation) Material | Conductor Material | Shield Type | Jacket Color | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 19 | 32 AWG | 2 | Drain Wire Rip Cord | 0.94 mm | 0.037 in | -30 ░C | 105 ░C | Multi-Conductor | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Foil | Chrome | 20 AWG | Poly-Vinyl Chloride (PVC) | 0.221 in | 5.61 mm | Instrumentation |
